CCM.FF-K4, EUROMET.M.FF-K4, and APMP.M.FF-K4
MEASURAND: Volume
NOMINAL VALUE: 100 mL
CCM.FF-K4 AND APMP.M.FF-K4 TRANSFER STANDARD: TS 03.04.03
Degrees of equivalence Di and expanded uncertainty Ui at approximately a 95% level of confidence

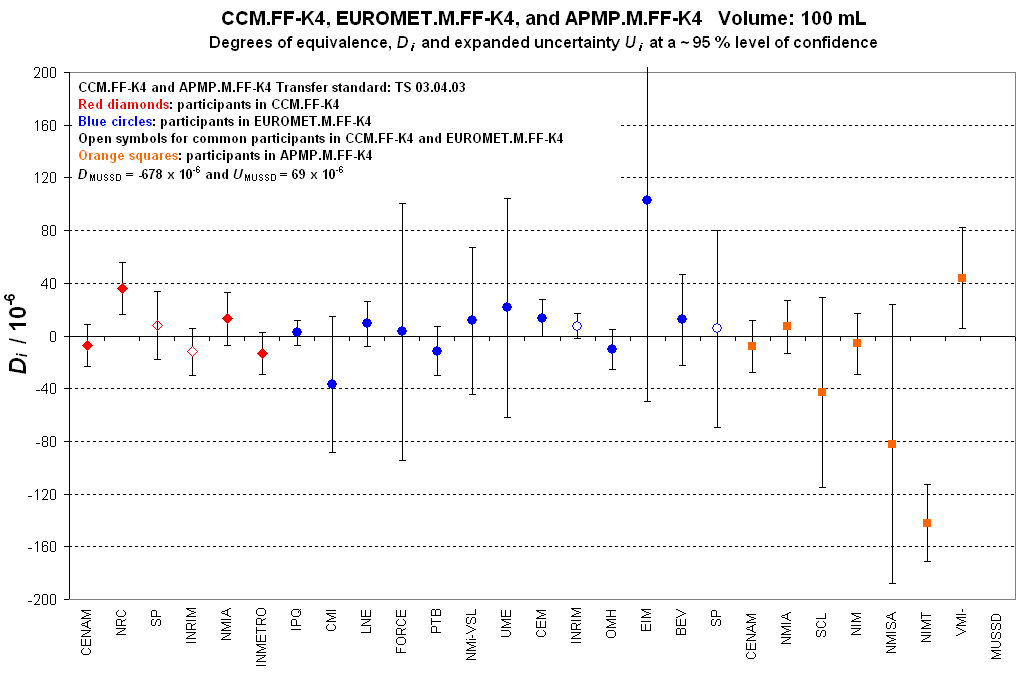

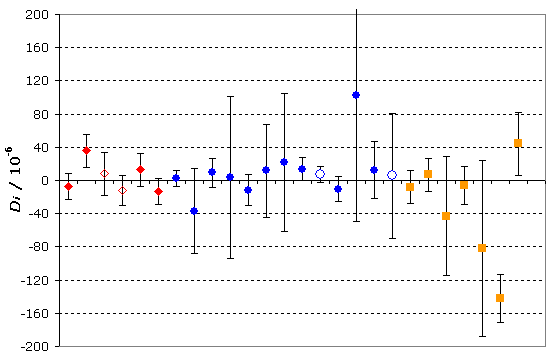

Click on the Graph below to get a closer view and the names of the participating laboratories
Red diamonds : participants in CCM.FF-K4
Blue circles : participants in EUROMET.FF-K4
Open symbols : common participants in CCM.FF-K4 and EUROMET.M.FF-K4 comparisons
Orange squares : participants in APMP.M.FF-K4
CCM.FF-K4, EUROMET.M.FF-K4, and APMP.M.FF-K4
MEASURAND: Volume
NOMINAL VALUE: 100 mL
CCM.FF-K4 and APMP.M.FF-K4 TRANSFER STANDARD: TS 03.04.03
| Lab i | Di | Ui |
| / 10-6 | / 10-6 | |
| CENAM | -7 | 16 |
| NRC | 36 | 20 |
| SP | 8 | 26 |
| INRIM | -12 | 18 |
| NMIA | 13 | 20 |
| INMETRO | -13 | 16 |
| IPQ* | 3 | 9 |
| CMI* | -37 | 51 |
| LNE* | 9 | 17 |
| FORCE* | 3 | 98 |
| PTB* | -11 | 19 |
| NMi-VSL* | 12 | 56 |
| UME* | 22 | 83 |
| CEM* | 14 | 14 |
| INRIM* | 8 | 9 |
| OMH* | -10 | 15 |
| EIM* | 103 | 152 |
| BEV* | 13 | 35 |
| SP* | 6 | 75 |
| CENAM** | -8 | 20 |
| NMIA** | 7 | 20 |
| SCL** | -43 | 72 |
| NIM** | -6 | 23 |
| NMISA** | -82 | 106 |
| NIMT** | -142 | 29 |
| VMI-STAMEQ** | 44 | 38 |
| MUSSD** | -678 | 69 |
* participants in EUROMET.M.FF-K4
** participants in APMP.M.FF-K4
Pair-wise degrees of equivalence involving APMP.M.FF-K4 participants are given on page 18 of the APMP.M.FF-K4 Final Report.
Results are presented under A4 printable format in Summary Results (.PDF file).
| Metrology area, Sub-field | Mass and related quantities, Fluid Flow |
| Description | Liquid volume |
| Time of measurements | 2002 - 2004 |
| Status | Approved for equivalence |
| Final Reports of the comparisons | |
| Measurand | Water volume: 100 mL |
| Parameters | Temperature: 20 °C |
| Transfer device | Two 100 ml Gay-Lussac glass pycnometers |
| Comparison type | Key Comparison |
| Consultative Committee | CCM (Consultative Committee for Mass and Related Quantities) |
| Conducted by | EURAMET (European Association of National Metrology Institutes) |
| RMO Internal Identifier | EUROMET Project No 692 |
| Comments | EUROMET.M.FF-K4 results published on 11 October 2006 Liquid volume |
| Pilot institute |
IPQ
Instituto Portugues da Qualidade Portugal |
| Contact person | E. Batista +35 1 212 948 167 |
| Pilot laboratory | |
|---|---|
| IPQ |
Instituto Portugues da Qualidade, Portugal, EURAMET |
| BEV |
Bundesamt für Eich- und Vermessungswesen, Austria, EURAMET |
| CEM |
Centro Español de Metrologia, Spain, EURAMET |
| CMI |
Czech Metrology Institute, Czechia, EURAMET |
| CNR-IMGC |
Consiglio Nazionale delle Ricerche - Istituto di Metrologia G. Colonnetti (until 2006), Italy, EURAMET |
| DANIAmet-FORCE |
FORCE Technology, Denmark, EURAMET |
| EIM |
Hellenic Institute of Metrology, Greece, EURAMET |
| LNE |
Laboratoire national de métrologie et d'essais, France, EURAMET |
| NMi-VSL |
Nederlands Meetinstituut - Van Swinden Laboratorium (became VSL in 2009), Netherlands, EURAMET |
| OMH |
Országos Mérésügyi Hivatal; Subsequently MKEH, now BKFH, Hungary, EURAMET |
| PTB |
Physikalisch-Technische Bundesanstalt, Germany, EURAMET |
| SP |
Technical Research Institute of Sweden from 2017 Research Institutes of Sweden AB, Sweden, EURAMET |
| UME |
TÜBITAK Ulusal Metroloji Enstitüsü, Türkiye, EURAMET |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCM.FF-K4, EUROMET.M.FF-K4, and APMP.M.FF-K4
MEASURAND: Volume
NOMINAL VALUE: 100 mL
TRANSFER STANDARD: TS 03.04.03
| The key comparison reference value, xR, is computed as the median of the results. Its expanded uncertainty UR is approximately given at a 95% level of confidence. The details are explained in Appendix C of the CCM.FF-K4 Final Report. xR = 99.8942 mL and UR = 0.0012 mL |
| The degree of equivalence of laboratory i with respect to the key comparison reference value is given by a pair of terms, both expressed in relative value: Di = (xi - xR)/xR and its expanded uncertainty Ui at approximately a 95% level of confidence. |
| The degree of equivalence between two laboratories i and j is given by a pair of terms, both expressed in relative value: Dij = Di - Dj and its expanded uncertainty Uij at approximately a 95% level of confidence. |
MEASURAND: Volume
NOMINAL VALUE: 100 mL
| The EUROMET reference value, xR-EUR, and its expanded uncertainty (k = 2), UR-EUR, are obtained from the weighted average of the EUROMET participants' results that are published here. xR-EUR = 100.0914 mL and UR-EUR = 0.0006 mL. |
| The degree of equivalence of laboratory i participant in EUROMET.M.FF-K4 with respect to the EUROMET reference value is given by a pair of terms, both expressed in mL: Di-EUR = (xi-EUR - xR-EUR) and its expanded uncertainty (k = 2), Ui-EUR, computed as Ui-EUR = 2[ui-EUR2 - (UR-EUR/2)2]1/2. |
| The degree of equivalence between two laboratories i and j is given by a pair of terms, both expressed in mL: Dij = (Di-EUR - Dj-EUR) and its expanded uncertainty (k = 2), Uij, expressed as Uij = 2(ui-EUR2 + uj-EUR2)1/2. |
The EUROMET.M.FF-K4 results are linked to those obtained at 100 mL in CCM.FF-K4 with the Transfer standard TS 03.04.03.
The technical protocols and transfer standards of both comparisons are very similar, and INRIM and SP participated in both exercises with comparable performance.
The degrees of equivalence relative to the EUROMET reference value are thus transferred to the key comparison reference value determined in CCM.FF-K4 with slight changes. The resulting values of Di, Ui, Dij, and Uij are listed in Annexes 3, 4, and 5 of the EUROMET.M.FF-K4 Final Report.
The matrix of equivalence obtained at 100 mL in CCM.FF-K4 with the Transfer standard TS 03.04.03 is thus extended to EUROMET.M.FF-K4 participants (after conversion to relative values).
The linking process uses common participation of NMIA and CENAM in both key comparisons, as described in section 7 of the APMP.M.FF-K4 Final Report.
Pair-wise degrees of equivalence involving APMP.M.FF-K4 participants are given on page 18 of the APMP.M.FF-K4 Final Report.
CCM.FF-K4, EUROMET.M.FF-K4, and APMP.M.FF-K4
MEASURAND: Volume
NOMINAL VALUE: 100 mL
TRANSFER STANDARD: TS 03.04.03 xi : volume of water the transfer standard contains at a reference temperature of
