CCQM-K41.2017
MEASURAND Amount-of-substance fraction of hydrogen sulfide in nitrogen
NOMINAL VALUE 10 µmol/mol
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in µmol/mol.
CCQM-K41.2017
MEASURAND Amount-of-substance fraction of hydrogen sulfide in nitrogen
NOMINAL VALUE 10 µmol/mol
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in µmol/mol.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
µmol/mol |
µmol/mol |
µmol/mol |
||
| NIM | -0.177 | 0.182 | ||
| IPQ | -0.003 | 0.257 | ||
| VNIIM | 0.102 | 0.183 | ||
| BFKH | 0.165 | 0.395 | ||
| NMIA | 0.023 | 0.343 | ||
| NPL | -0.106 | 0.194 | ||
| NMISA | -0.03 | 0.19 | ||
| KRISS | 0.002 | 0.186 | ||
| VSL | -0.002 | 0.172 |
| Metrology area, Sub-field | Chemistry and Biology, Gases |
| Description | Hydrogen Sulfide in Nitrogen |
| Time of measurements | 2017 |
| Status | Approved for equivalence |
| Final Reports of the comparisons | |
| Measurand | Amount of substance fraction, nominal value: 10 µmol/mol |
| Transfer device | Gas cylinders |
| Comparison type | Key Comparison |
| Consultative Committee | CCQM (Consultative Committee for Amount of Substance) |
| Conducted by | CCQM (Consultative Committee for Amount of Substance) |
| Pilot institute |
KRISS
Korea Research Institute of Standards and Science Korea, Republic of |
| Contact person | Dalho Kim 82-42-868-5356 |
| Pilot laboratory | |
|---|---|
| KRISS |
Korea Research Institute of Standards and Science, Korea, Republic of, APMP |
| BFKH |
Government Office of the Capital City Budapest, Hungary, EURAMET |
| IPQ |
Instituto Portugues da Qualidade, Portugal, EURAMET |
| NIM |
National Institute of Metrology, China, APMP |
| NMIA |
National Measurement Institute, Australia, Australia, APMP |
| NMISA |
National Metrology Institute of South Africa, South Africa, AFRIMETS |
| NPL |
National Physical Laboratory, United Kingdom, EURAMET |
| VNIIM |
D.I. Mendeleyev Institute for Metrology, Rosstandart, Russian Federation, COOMET |
| VSL |
VSL, Netherlands, EURAMET |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCQM-K41.2017
MEASURAND Amount-of-substance fraction of hydrogen sulfide in nitrogen
NOMINAL VALUE 10 µmol/mol
Degrees of equivalence represented by Di = (xI - xR) and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in µmol/mol.

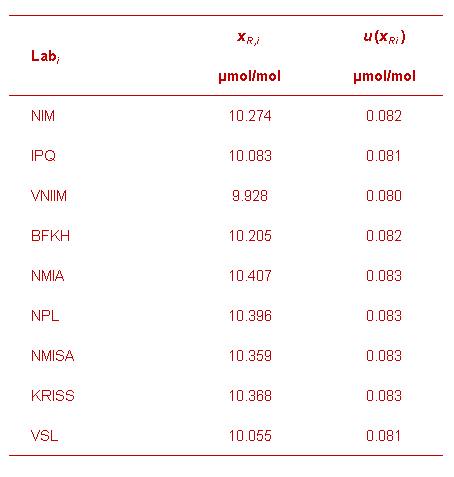

The gravimetric determination carried out by KRISS of the amount of substance fractions were adopted as key comparison reference values xR,i and associated standard uncertainty uR,i for each institute Labi.
Di = (xi - xR) and its expanded uncertainty Ui at a 95 % level of confidence where Ui = 2 ui.
CCQM-K41.2017
MEASURAND Amount-of-substance fraction of hydrogen sulfide in nitrogen
NOMINAL VALUE 10 µmol/mol

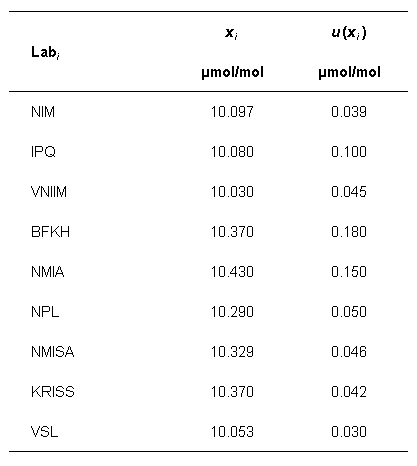

xi result obtained laboratory Labi
u (xi) combined standard uncertainty of xi
