CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance
Filter D: 1 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

Graphs of equivalence

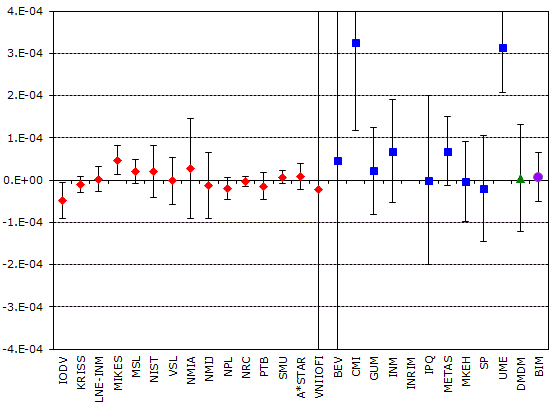

Filter D - 380 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 6.540E-04; UBEV = 1.685E-03

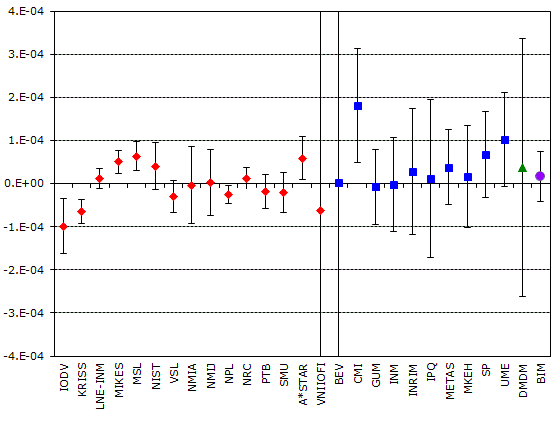

Filter D - 400 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 6.622E-04; UBEV = 1.542E-03

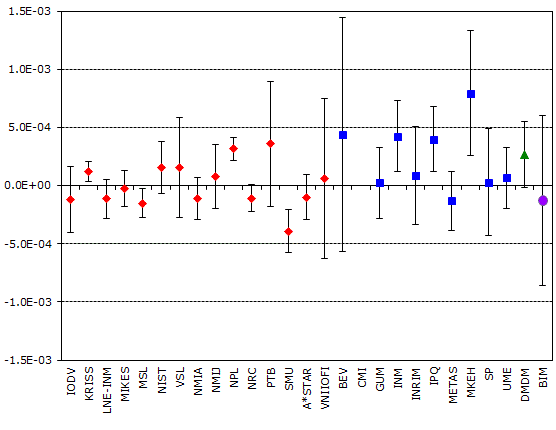

Filter D - 500 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 5.983E-04; UBEV = 1.403E-03; DCMI = -2.016E-03 and UCMI = 9.717E-05

Filter D - 600 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 6.281E-04; UBEV = 2.404E-03

Filter D - 700 nm: Di and Ui (k = 2)

Note: UBEV = 2.217E-03

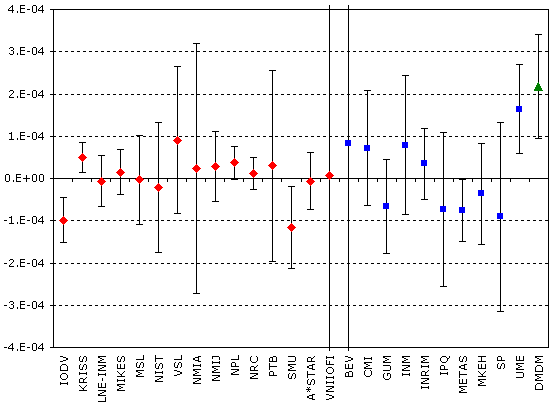

Filter D - 800 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 6.029E-04; UBEV = 2.002E-03

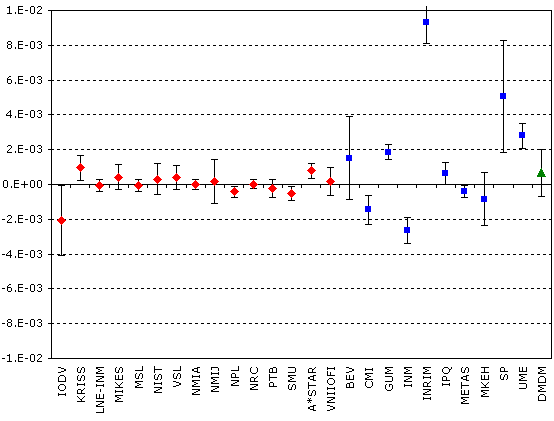

Filter D - 900 nm: Di and Ui (k = 2)

Note: UNMIJ = 1.178E-03; UVNIIOFI = 6.081E-04; UBEV = 2.000E-03; DINRIM = 9.023E-04 and UINRIM = 1.082E-04; DSP = 4.793E-04 and USP = 4.019E-04

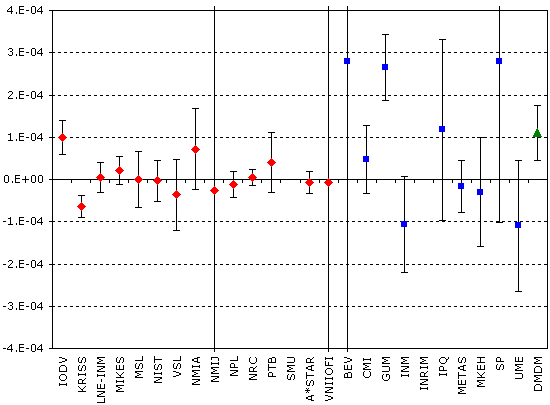

Filter D - 1000 nm: Di and Ui (k = 2)

Note: UNMIJ = 1.030E-03; UVNIIOFI = 6.161E-04; UBEV = 1.801E-03; DINRIM = 6.069E-04 and UINRIM = 6.151E-05

Red diamonds : participants in CCPR-K6
Blue squares : participants in EUROMET.PR-K6
Green triangle : participant in EURAMET.PR-K6.1
Violet circle : participant in EURAMET.PR-K6.2

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO-31-0 Annex B Rule B.

print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance
Filter B: 56 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

Graphs of equivalence

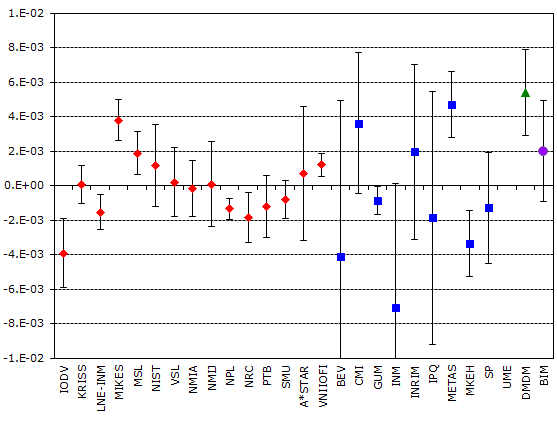

Filter B - 380 nm: Di and Ui (k = 2)

Note: DUME = 1.967E-02 and UUME = 4.210E-03

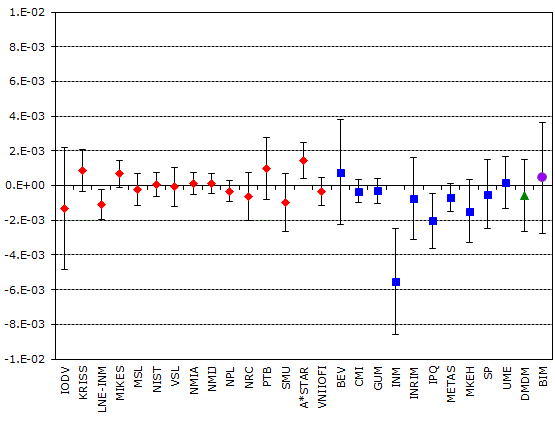

Filter B - 400 nm: Di and Ui (k = 2)

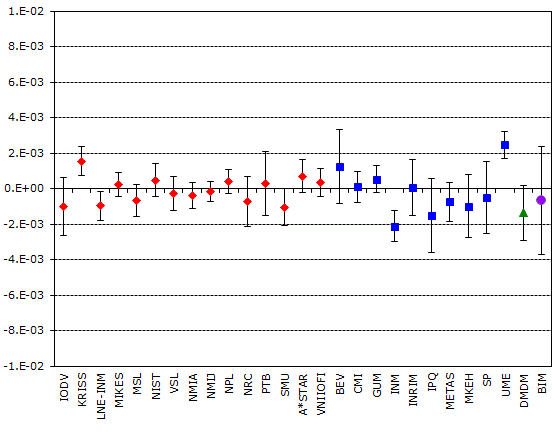

Filter B - 500 nm: Di and Ui (k = 2)

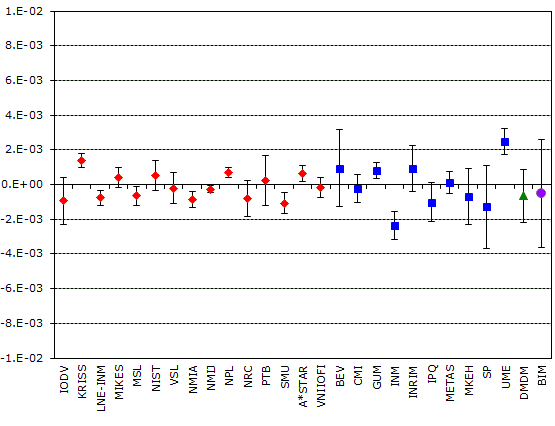

Filter B - 600 nm: Di and Ui (k = 2)

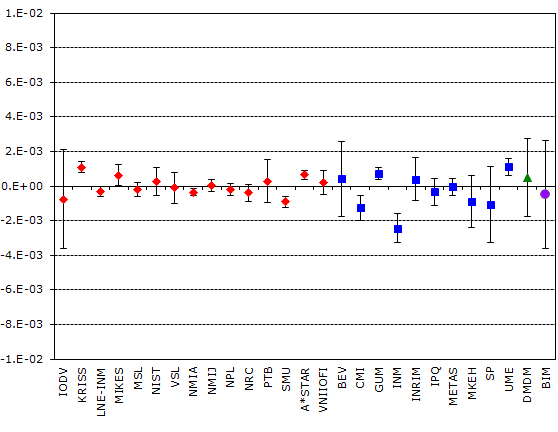

Filter B - 700 nm: Di and Ui (k = 2)

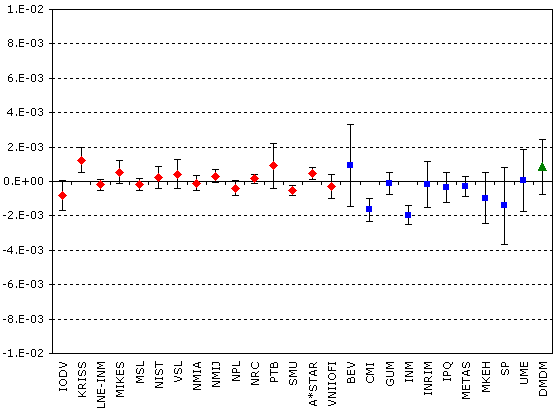

Filter B - 800 nm: Di and Ui (k = 2)

Filter B - 900 nm: Di and Ui (k = 2)

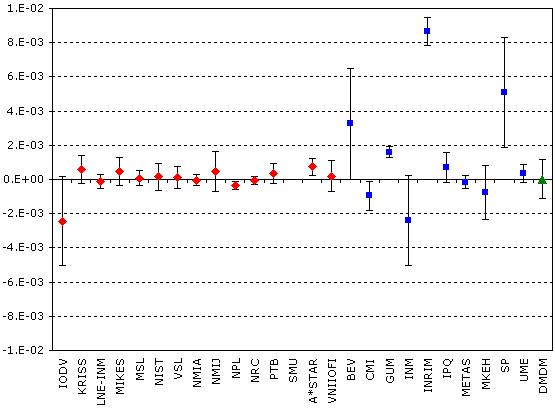

Filter B - 1000 nm: Di and Ui (k = 2)

Red diamonds : participants in CCPR-K6
Blue squares : participants in EUROMET.PR-K6
Green triangle : participant in EURAMET.PR-K6.1
Violet circle : participant in EURAMET.PR-K6.2

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO-31-0 Annex B Rule B.

print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance
Filter C: 10 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

Graphs of equivalence

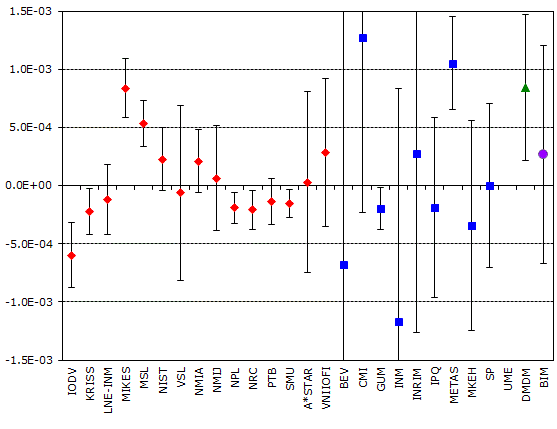

Filter C - 380 nm: Di and Ui (k = 2)

Note: DUME = 4.691E-03 and UUME = 7.527E-04

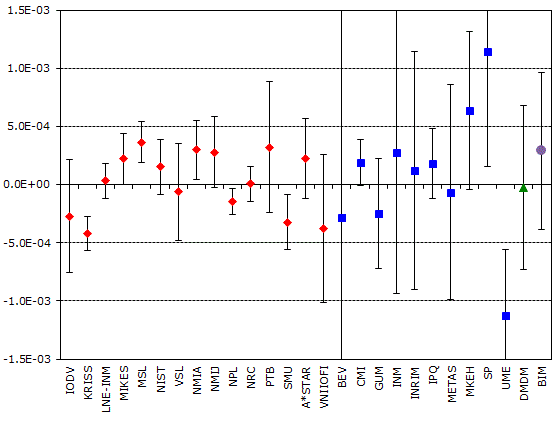

Filter C - 400 nm: Di and Ui (k = 2)

Note: UBEV = 2.002E-03

Filter C - 500 nm: Di and Ui (k = 2)

Note: DCMI = -2.259E-02 and UCMI = 1.087E-04

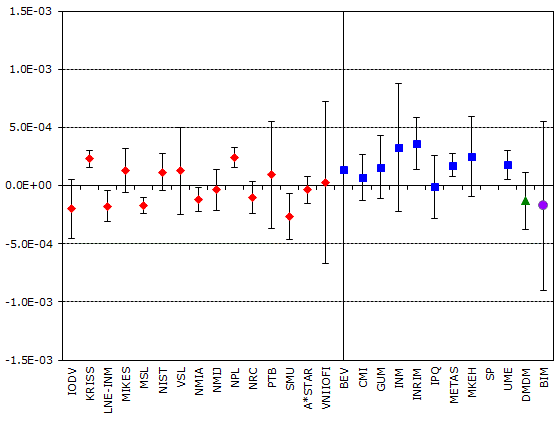

Filter C - 600 nm: Di and Ui (k = 2)

Note: UBEV = 2.402E-03; DSP = 6.872E-01 and USP = 4.260E-04

Filter C - 700 nm: Di and Ui (k = 2)

Note: UBEV = 2.401E-03

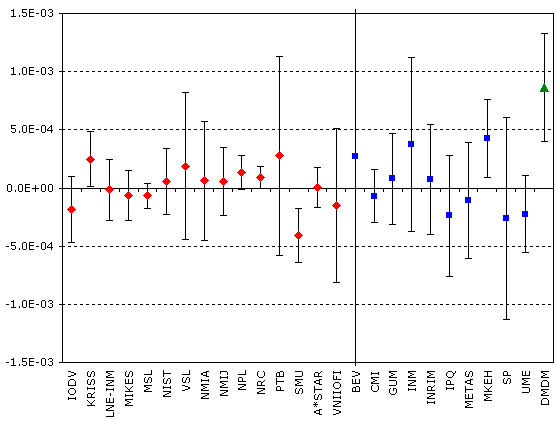

Filter C - 800 nm: Di and Ui (k = 2)

Note: UBEV = 2.201E-03

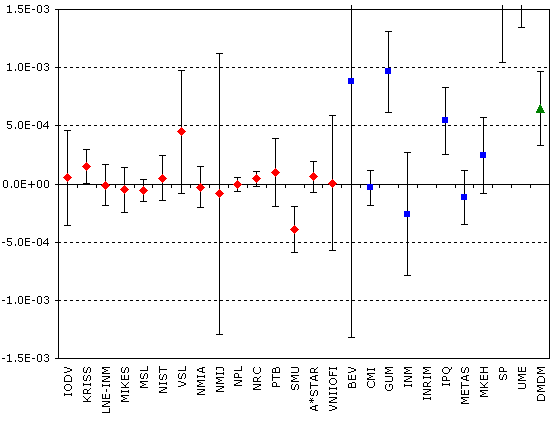

Filter C - 900 nm: Di and Ui (k = 2)

Note: DINRIM = 3.672E-03 and UINRIM = 4.112E-04; DSP = 2.226E-03 and USP = 1.183E-03; DUME = 1.594E-03 and UUME = 2.472E-04

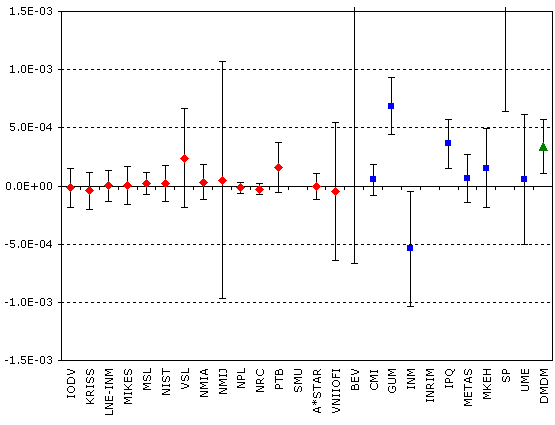

Filter C - 1000 nm: Di and Ui (k = 2)

Note: DBEV = 1.533E-03 and UBEV = 2.200E-03; DINRIM = 2.689E-03 and UINRIM = 1.614E-04; DSP = 1.561E-03 and USP = 9.206E-04

Red diamonds : participants in CCPR-K6
Blue squares : participants in EUROMET.PR-K6
Green triangle : participant in EURAMET.PR-K6.1
Violet circle : participant in EURAMET.PR-K6.2

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO-31-0 Annex B Rule B.

print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance
Filter D: 1 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

Graphs of equivalence

Filter D - 380 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 6.540E-04; UBEV = 1.685E-03

Filter D - 400 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 6.622E-04; UBEV = 1.542E-03

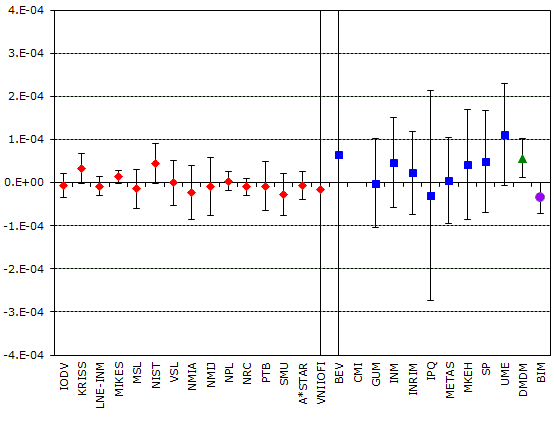

Filter D - 500 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 5.983E-04; UBEV = 1.403E-03; DCMI = -2.016E-03 and UCMI = 9.717E-05

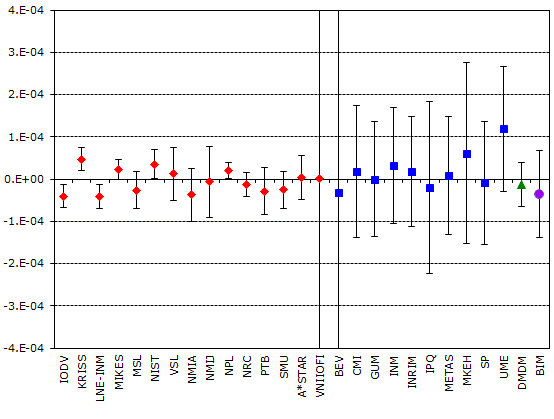

Filter D - 600 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 6.281E-04; UBEV = 2.404E-03

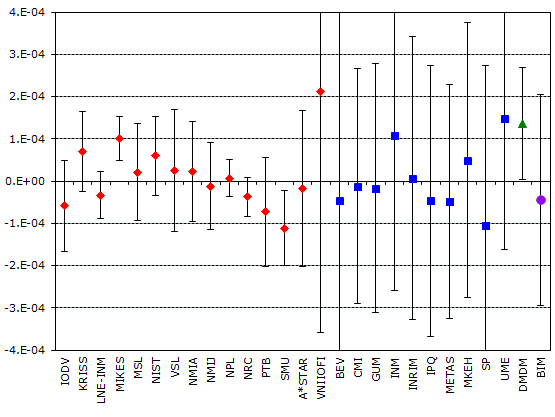

Filter D - 700 nm: Di and Ui (k = 2)

Note: UBEV = 2.217E-03

Filter D - 800 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 6.029E-04; UBEV = 2.002E-03

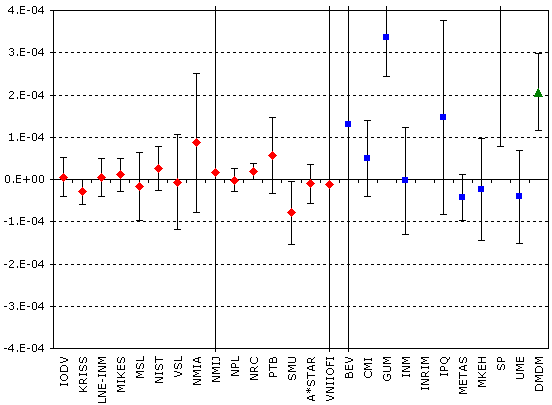

Filter D - 900 nm: Di and Ui (k = 2)

Note: UNMIJ = 1.178E-03; UVNIIOFI = 6.081E-04; UBEV = 2.000E-03; DINRIM = 9.023E-04 and UINRIM = 1.082E-04; DSP = 4.793E-04 and USP = 4.019E-04

Filter D - 1000 nm: Di and Ui (k = 2)

Note: UNMIJ = 1.030E-03; UVNIIOFI = 6.161E-04; UBEV = 1.801E-03; DINRIM = 6.069E-04 and UINRIM = 6.151E-05

Red diamonds : participants in CCPR-K6
Blue squares : participants in EUROMET.PR-K6
Green triangle : participant in EURAMET.PR-K6.1
Violet circle : participant in EURAMET.PR-K6.2

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO-31-0 Annex B Rule B.

print out

CCPR-K6, EUROMET.PR-K6 and EURAMET.PR-K6.1

MEASURAND: Spectral regular transmittance
Filter E: 0.1 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

Graphs of equivalence

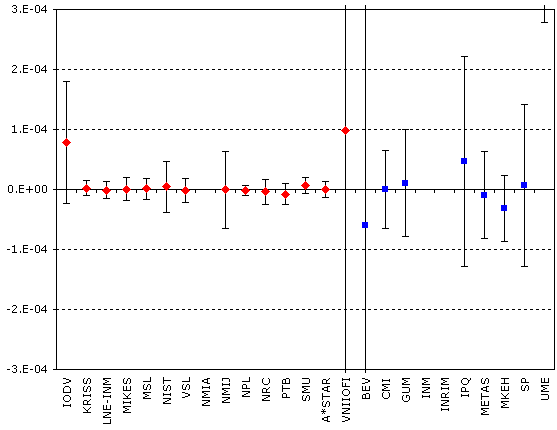

Filter E - 380 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 6.583E-04; UBEV = 1.686E-03; DUME = 3.500E-04 and UUME = 7.136E-05

Filter E - 400 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 6.181E-04; UBEV = 1.541E-03

Filter E - 500 nm: Di and Ui (k = 2)


Note: UVNIIOFI = 6.140E-04; UBEV = 1.400E-03

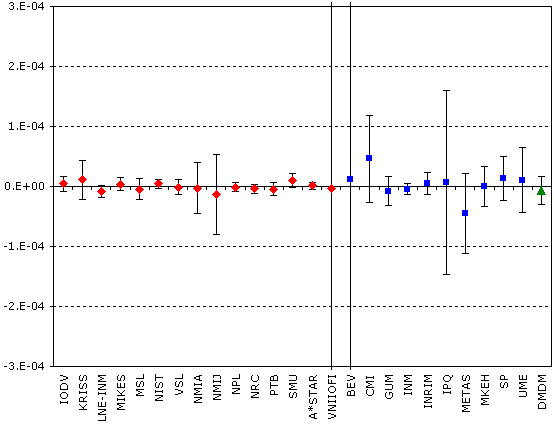

Filter E - 600 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 6.360E-04; UBEV = 2.400E-03

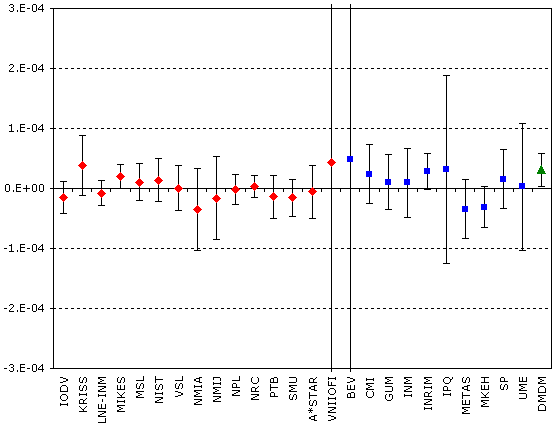

Filter E - 700 nm: Di and Ui (k = 2)


Note: UVNIIOFI = 5.621E-04; UBEV = 2.000E-03

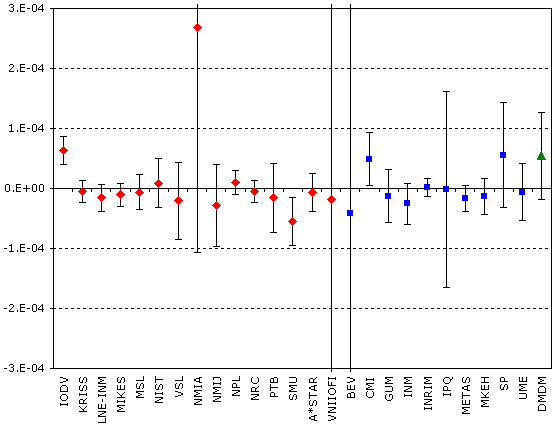

Filter E - 800 nm: Di and Ui (k = 2)

Note: UVNIIOFI = 6.160E-04; UBEV = 2.000E-03

Filter E - 900 nm: Di and Ui (k = 2)

Note: UNMIJ = 1.194E-03; UVNIIOFI = 6.020E-04; UBEV = 2.000E-03; DGUM = 2.892E-04 and UGUM = 4.061E-05; DINRIM = 3.580E-04 and UINRIM = 1.890E-05

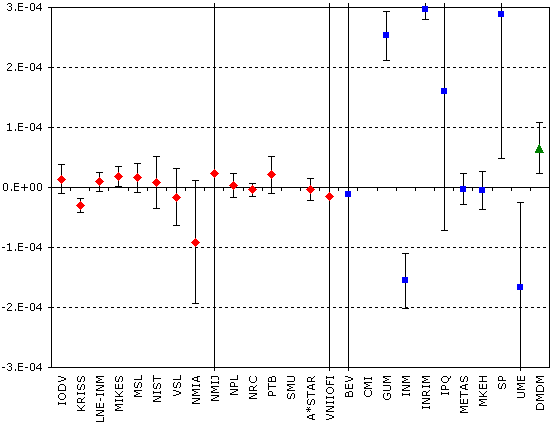

Filter E - 1000 nm: Di and Ui (k = 2)

Note: UNMIJ = 1.006E-03; UVNIIOFI = 6.300E-04; UBEV = 1.800E-03; DCMI = -1.676E-03 and UCMI = 2.142E-05

Red diamonds : participants in CCPR-K6
Blue squares : participants in EUROMET.PR-K6 only
Green triangle : participant in EURAMET.PR-K6.1 only


Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO-31-0 Annex B Rule B.

Comparison
Comparison close
Results

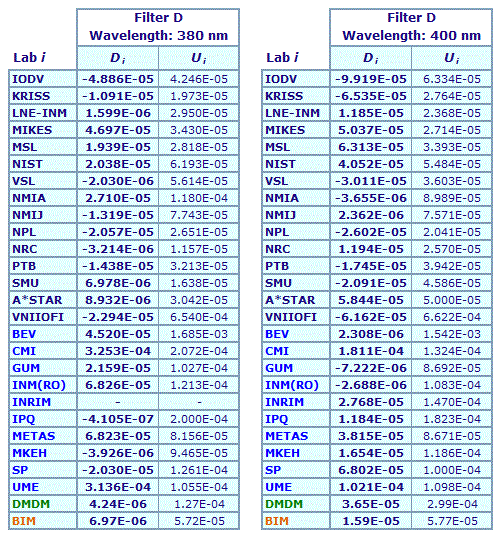

print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance
Filter D: 1 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

The tables below show the degrees of equivalence relative to the key comparison reference values

Blue indicates participants in EUROMET.PR-K6
Green indicates participant in EURAMET.PR-K6.1
Orange indicates participant in EURAMET.PR-K6.1

Results are available in Summary Results (PDF file).

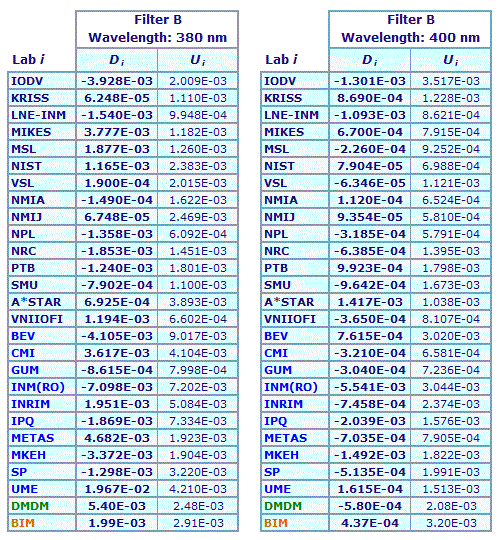

print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance

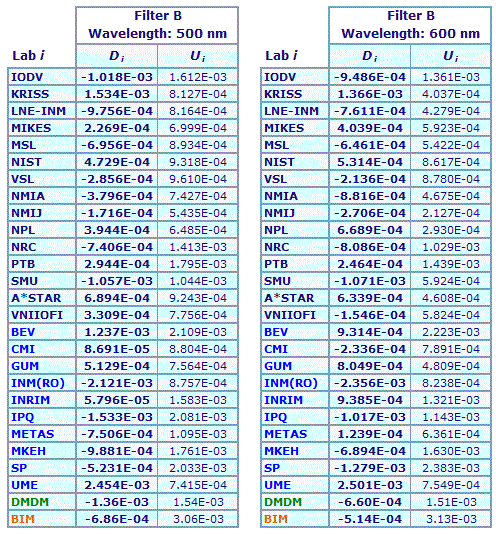

Filter B: 56 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

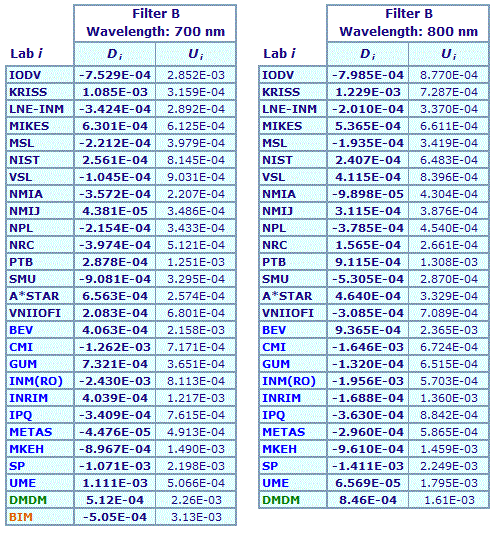

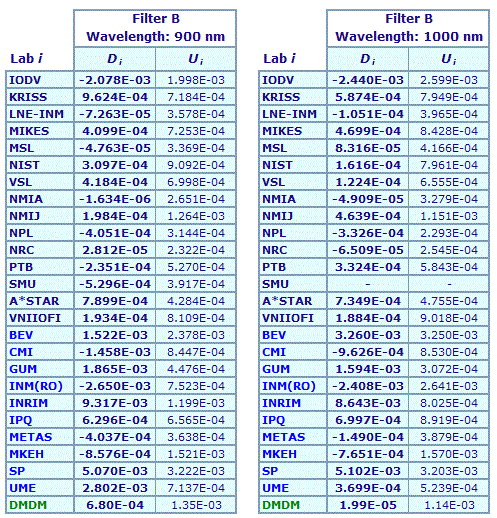

The tables below show the degrees of equivalence relative to the key comparison reference values

Blue indicates participants in EUROMET.PR-K6
Green indicates participant in EURAMET.PR-K6.1
Orange indicates participant in EURAMET.PR-K6.1

Results are available in Summary Results (PDF file).

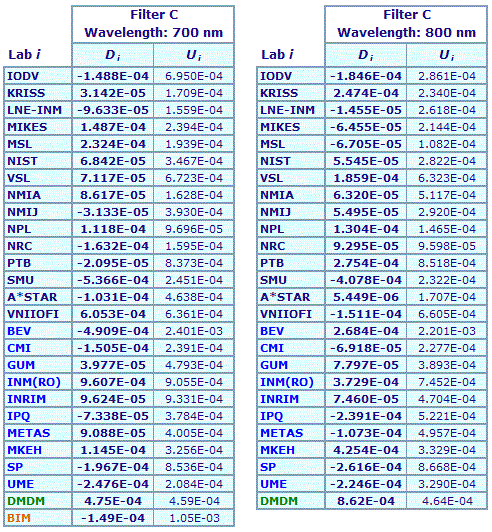

print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance
Filter C: 10 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

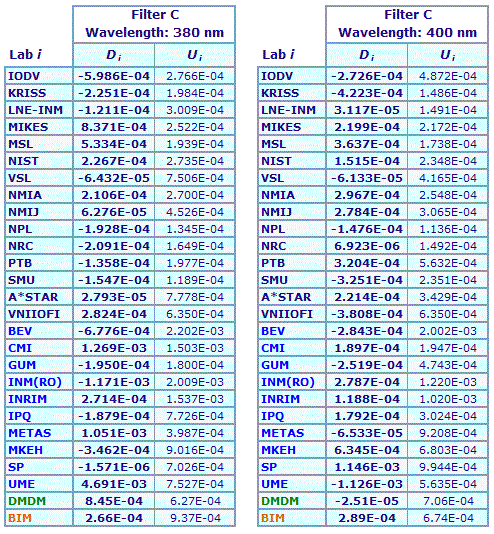

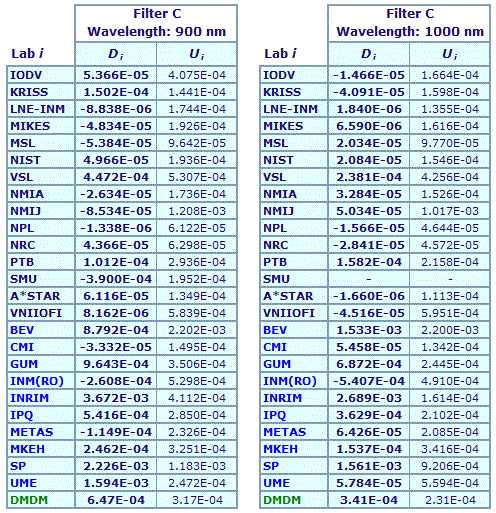

The tables below show the degrees of equivalence relative to the key comparison reference values

Blue indicates participants in EUROMET.PR-K6
Green indicates participant in EURAMET.PR-K6.1
Orange indicates participant in EURAMET.PR-K6.1

Results are available in Summary Results (PDF file).

print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance

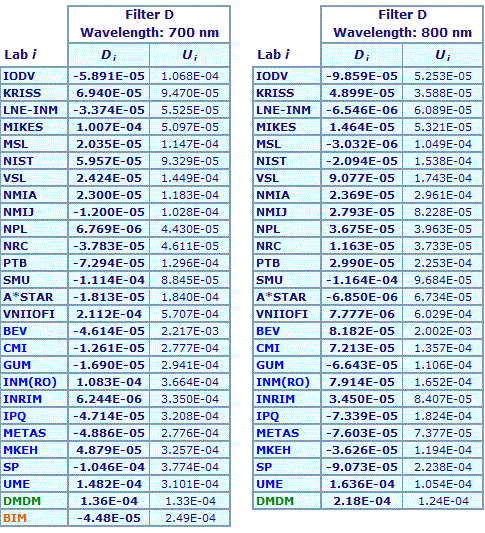

Filter D: 1 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

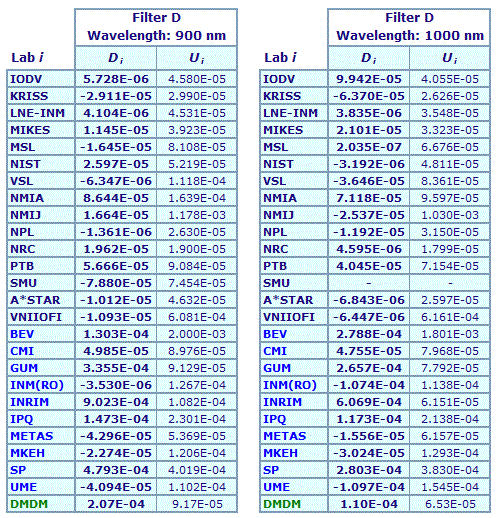

The tables below show the degrees of equivalence relative to the key comparison reference values

Blue indicates participants in EUROMET.PR-K6
Green indicates participant in EURAMET.PR-K6.1
Orange indicates participant in EURAMET.PR-K6.1

Results are available in Summary Results (PDF file).

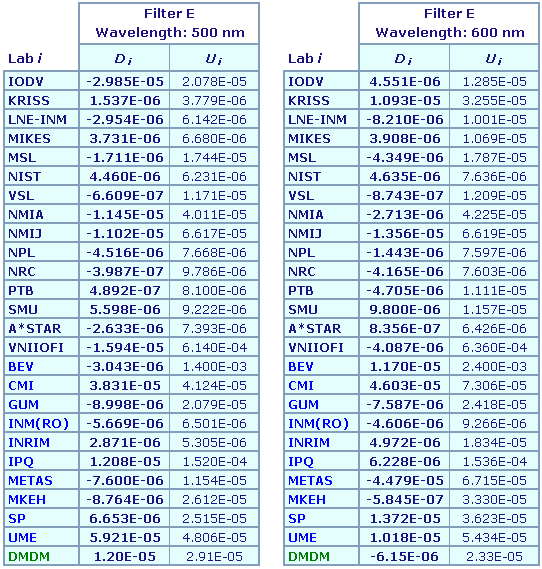

print out

CCPR-K6, EUROMET.PR-K6 and EURAMET.PR-K6.1

MEASURAND: Spectral regular transmittance
Filter E: 0.1 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

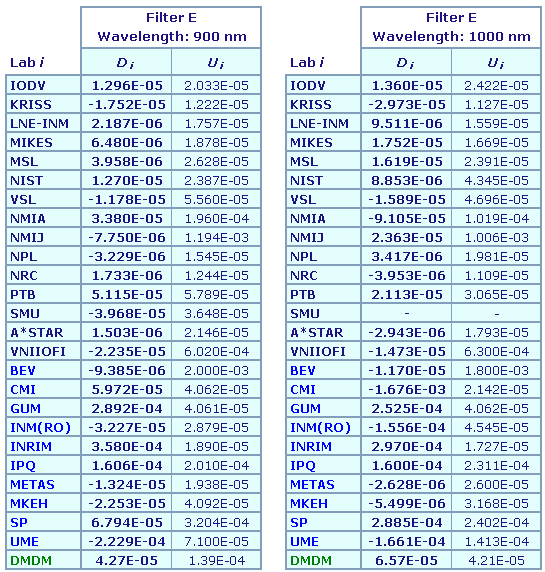

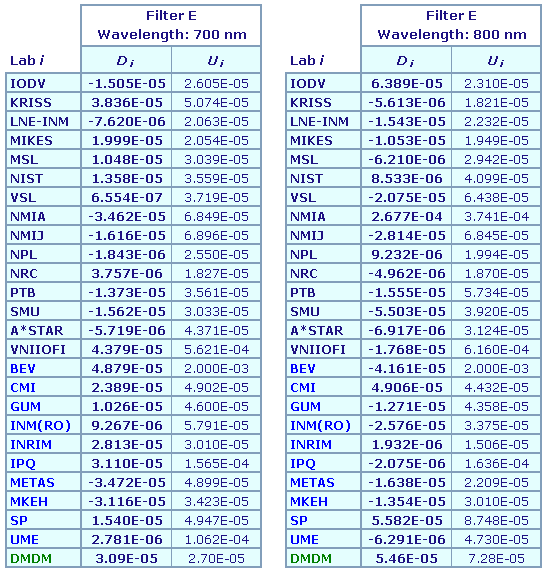

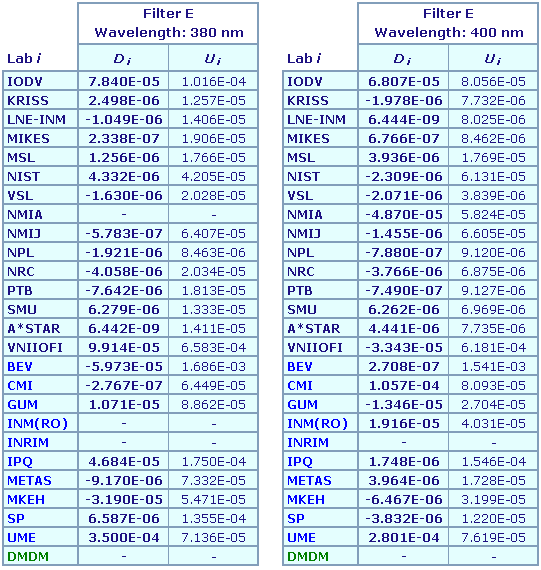

The tables below show the degrees of equivalence relative to the key comparison reference values


Blue indicates participants in EUROMET.PR-K6 only
Green indicates participant in EURAMET.PR-K6.1 only

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO-31-0 Annex B Rule B.

Results are available in Summary Results (PDF file).

Comparison
Comparison close
RMO comparison
Linked comparison
EUROMET.PR-K6
print out
Metrology area, Sub-field Photometry and Radiometry, Properties of materials
Description Spectral regular transmittance
Time of measurements 2000 - 2001
Status Approved for equivalence
Final Reports of the comparisons
Metrologia, 2011, 48, Tech. Suppl., 02002
Measurand Spectral regular transmittance
Parameters Wavelength from 380 nm to 1000 nm
Transfer device Colored glass filters
Comparison type Key Comparison
Consultative Committee CCPR (Consultative Committee for Photometry and Radiometry)
Conducted by EURAMET (European Association of National Metrology Institutes)
RMO Internal Identifier EUROMET Project No 538
Comments

Results published on 5 April 2011

EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2 results are linked to those of CCPR-K6

Spectral regular transmittance
Pilot institute LNE-LCM/Cnam
Conservatoire National des Arts et Métiers/Laboratoire Commun de Métrologie
France
Contact person Jean Bastie
Additional
First Name Last Name
wwww@ww.www +356719836 Institute 1 Institute 1 Khmelnitskiy
BEV

Bundesamt für Eich- und Vermessungswesen, Austria, EURAMET

CMI

Czech Metrology Institute, Czechia, EURAMET

GUM

Glowny Urzad Miar, Central Office of Measures, Poland, EURAMET

IFA-CSIC

Instituto de Fisica Aplicada - Consejo Superior de Investigaciones Cientificas, now IO-CSIC, Instituto de Optica Daza de Valdés, Spain, EURAMET

INM

National Institute of Metrology, Romania, EURAMET

INRIM

Istituto Nazionale di Ricerca Metrologica, Italy, EURAMET

IPQ

Instituto Portugues da Qualidade, Portugal, EURAMET

LNE-INM

Conservatoire national des arts et métiers / Institut National de Métrologie, France, EURAMET

METAS

Federal Institute of Metrology, Switzerland, EURAMET

MIKES

VTT Technical Research Centre of Finland Ltd, Centre for Metrology/Mittatekniikan keskus, Finland, EURAMET

MKEH

Hungarian Trade Licensing Office; now BFKH, Hungary, EURAMET

NPL

National Physical Laboratory, United Kingdom, EURAMET

PTB

Physikalisch-Technische Bundesanstalt, Germany, EURAMET

SMU

Slovensky Metrologicky Ustav, Slovakia, EURAMET

SP

Technical Research Institute of Sweden from 2017 Research Institutes of Sweden AB, Sweden, EURAMET

UME

TÜBITAK Ulusal Metroloji Enstitüsü, Türkiye, EURAMET

VSL

VSL, Netherlands, EURAMET

Comparison
Comparison close
Results
print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance
Filter D: 1 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

  • Key comparison CCPR-K6

The key comparison reference value, xR, and its standard uncertainty, uR, are deduced from the participants' results compared to the Pilot's results, using a weighted mean with application of a cut-off, outliers being excluded, as explained in Sections 5 and 8 of the Final Report.

380 nm: xR = -1.599E-06, uR = 3.689E-06
400 nm: xR = -1.185E-05, uR = 4.792E-06
500 nm: xR = 8.555E-06, uR = 4.187E-06
600 nm: xR = 4.101E-05, uR = 4.668E-06
700 nm: xR = 3.374E-05, uR = 1.090E-05
800 nm: xR = 6.546E-06, uR = 8.918E-06
900 nm: xR = -4.104E-06, uR = 6.348E-06
1000 nm: xR = -3.835E-06, uR = 5.411E-06

The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) Ui, computed according to equations 16 and 17 on page 52 of the Final Report (see also Section 9 on page 62).

The degrees of equivalence between pairs of laboratories have not been computed for this key comparison.
  • Linking key comparison EUROMET.PR-K6 to CCPR-K6

The linking process is described in section 6 of the EUROMET.PR-K6 Final Report. For each wavelength, the Matrix and the Graph of equivalence obtained in CCPR-K6 are extended to the participants in EUROMET.PR-K6 only.

  • Linking key comparison EURAMET.PR-K6.1 to CCPR-K6

The linking process is described in section 6 of the EURAMET.PR-K6.1 Final Report. For each wavelength, the Matrix and the Graph of equivalence obtained in CCPR-K6 are extended to DMDM participant in EURAMET.PR-K6.1 only.

  • Linking key comparison EURAMET.PR-K6.2 to CCPR-K6

The linking is made via the VSL who participated both in the CCPR-K6 and EURAMET.PR-K6.2 comparisons.

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO-31-0 Annex B Rule B.

print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

  • Key comparison CCPR-K6

MEASURAND: Spectral regular transmittance
Filter B: 56 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

The key comparison reference value, xR, and its standard uncertainty, uR, are deduced from the participants' results compared to the Pilot's results, using a weighted mean with application of a cut-off, outliers being excluded, as explained in Sections 5 and 8 of the Final Report.

380 nm: xR = 1.540E-03, uR = 1.637E-04
400 nm: xR = 1.093E-03, uR = 1.187E-04
500 nm: xR = 9.756E-04, uR = 1.139E-04
600 nm: xR = 7.611E-04, uR = 6.358E-05
700 nm: xR = 3.424E-04, uR = 5.251E-05
800 nm: xR = 2.010E-04, uR = 5.879E-05
900 nm: xR = 7.263E-05, uR = 5.819E-05
1000 nm: xR = 1.051E-04, uR = 6.384E-05

The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) Ui, computed according to equations 16 and 17 on page 52 of the Final Report (see also Section 9 on page 62).

The degrees of equivalence between pairs of laboratories have not been computed for this key comparison.

  • Linking key comparison EUROMET.PR-K6 to CCPR-K6

The linking process is described in section 6 of the EUROMET.PR-K6 Final Report. For each wavelength, the Matrix and the Graph of equivalence obtained in CCPR-K6 are extended to the participants in EUROMET.PR-K6 only.

  • Linking key comparison EURAMET.PR-K6.1 to CCPR-K6

The linking process is described in section 6 of the EURAMET.PR-K6.1 Final Report. For each wavelength, the Matrix and the Graph of equivalence obtained in CCPR-K6 are extended to DMDM participant in EURAMET.PR-K6.1 only.

  • Linking key comparison EURAMET.PR-K6.2 to CCPR-K6

The linking is made via the VSL who participated both in the CCPR-K6 and EURAMET.PR-K6.2 comparisons.

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO-31-0 Annex B Rule B.

print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

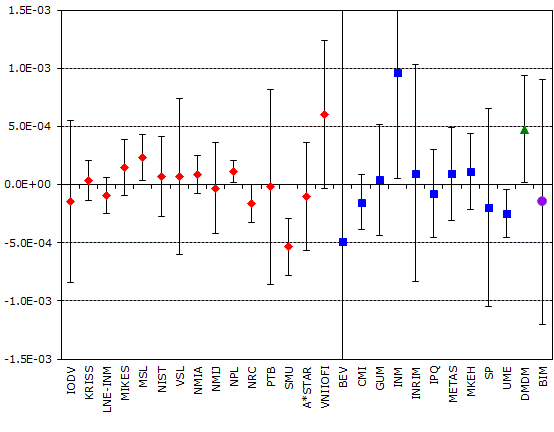

  • Key comparison CCPR-K6

MEASURAND: Spectral regular transmittance
Filter C: 10 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

The key comparison reference value, xR, and its standard uncertainty, uR, are deduced from the participants' results compared to the Pilot's results, using a weighted mean with application of a cut-off, outliers being excluded, as explained in Sections 5 and 8 of the Final Report.

380 nm: xR = 1.211E-04, uR = 3.114E-05
400 nm: xR = -3.117E-05, uR = 2.835E-05
500 nm: xR = 1.156E-04, uR = 2.193E-05
600 nm: xR = 1.777E-04, uR = 1.765E-05
700 nm: xR = 9.633E-05, uR = 2.987E-05
800 nm: xR = 1.455E-05, uR = 2.755E-05
900 nm: xR = 8.838E-06, uR = 1.978E-05
1000 nm: xR = -1.840E-06, uR = 1.555E-05

The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) Ui, computed according to equations 16 and 17 on page 52 of the Final Report (see also Section 9 on page 62).

The degrees of equivalence between pairs of laboratories have not been computed for this key comparison.
  • Linking key comparison EUROMET.PR-K6 to CCPR-K6

The linking process is described in section 6 of the EUROMET.PR-K6 Final Report. For each wavelength, the Matrix and the Graph of equivalence obtained in CCPR-K6 are extended to the participants in EUROMET.PR-K6 only.

  • Linking key comparison EURAMET.PR-K6.1 to CCPR-K6

The linking process is described in section 6 of the EURAMET.PR-K6.1 Final Report. For each wavelength, the Matrix and the Graph of equivalence obtained in CCPR-K6 are extended to DMDM participant in EURAMET.PR-K6.1 only.

  • Linking key comparison EURAMET.PR-K6.2 to CCPR-K6

The linking is made via the VSL who participated both in the CCPR-K6 and EURAMET.PR-K6.2 comparisons.

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO-31-0 Annex B Rule B.

print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance
Filter D: 1 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

  • Key comparison CCPR-K6

The key comparison reference value, xR, and its standard uncertainty, uR, are deduced from the participants' results compared to the Pilot's results, using a weighted mean with application of a cut-off, outliers being excluded, as explained in Sections 5 and 8 of the Final Report.

380 nm: xR = -1.599E-06, uR = 3.689E-06
400 nm: xR = -1.185E-05, uR = 4.792E-06
500 nm: xR = 8.555E-06, uR = 4.187E-06
600 nm: xR = 4.101E-05, uR = 4.668E-06
700 nm: xR = 3.374E-05, uR = 1.090E-05
800 nm: xR = 6.546E-06, uR = 8.918E-06
900 nm: xR = -4.104E-06, uR = 6.348E-06
1000 nm: xR = -3.835E-06, uR = 5.411E-06

The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) Ui, computed according to equations 16 and 17 on page 52 of the Final Report (see also Section 9 on page 62).

The degrees of equivalence between pairs of laboratories have not been computed for this key comparison.
  • Linking key comparison EUROMET.PR-K6 to CCPR-K6

The linking process is described in section 6 of the EUROMET.PR-K6 Final Report. For each wavelength, the Matrix and the Graph of equivalence obtained in CCPR-K6 are extended to the participants in EUROMET.PR-K6 only.

  • Linking key comparison EURAMET.PR-K6.1 to CCPR-K6

The linking process is described in section 6 of the EURAMET.PR-K6.1 Final Report. For each wavelength, the Matrix and the Graph of equivalence obtained in CCPR-K6 are extended to DMDM participant in EURAMET.PR-K6.1 only.

  • Linking key comparison EURAMET.PR-K6.2 to CCPR-K6

The linking is made via the VSL who participated both in the CCPR-K6 and EURAMET.PR-K6.2 comparisons.

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO-31-0 Annex B Rule B.

print out

CCPR-K6, EUROMET.PR-K6 and EURAMET.PR-K6.1

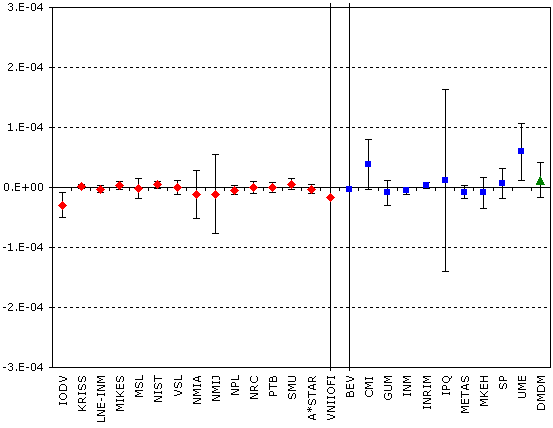

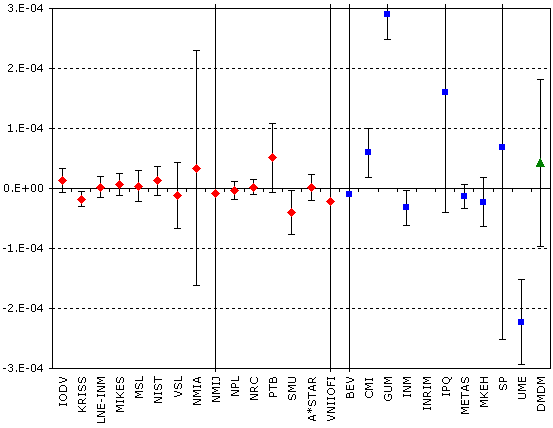

MEASURAND: Spectral regular transmittance
Filter E: 0.1 % nominal transmittance at 546 nm
Wavelength: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm

  • Key comparison CCPR-K6

The key comparison reference value, xR, and its standard uncertainty, uR, are deduced from the participants' results compared to the Pilot's results, using a weighted mean with application of a cut-off, outliers being excluded, as explained in Sections 5 and 8 of the Final Report.

380 nm: xR = 1.049E-06, uR = 2.379E-06
400 nm: xR = -6.444E-09, uR = 1.209E-06
500 nm: xR = 2.954E-06, uR = 1.125E-06
600 nm: xR = 8.210E-06, uR = 1.484E-06
700 nm: xR = 7.620E-06, uR = 4.124E-06
800 nm: xR = 1.543E-05, uR = 3.869E-06
900 nm: xR = -2.187E-06, uR = 3.015E-06
1000 nm: xR = -9.511E-06, uR = 2.903E-06

The degree of equivalence of laboratory i relative to the key comparison reference value is given by a pair of terms: Di and its expanded uncertainty (k = 2) Ui, computed according to equations 16 and 17 on page 52 of the Final Report (see also Section 9 on page 62).

The degrees of equivalence between pairs of laboratories have not been computed for this key comparison.
  • Linking key comparison EUROMET.PR-K6 to CCPR-K6

The linking process is described in section 6 of the EUROMET.PR-K6 Final Report. For each wavelength, the Matrix and the Graph of equivalence obtained in CCPR-K6 are extended to the participants in EUROMET.PR-K6 only.

  • Linking key comparison EURAMET.PR-K6.1 to CCPR-K6

The linking process is described in section 6 of the EURAMET.PR-K6.1 Final Report. For each wavelength, the Matrix and the Graph of equivalence obtained in CCPR-K6 are extended to DMDM participant in EURAMET.PR-K6.1 only.

Unless otherwise stated, in the final numbers presented here, rounding has been applied according to ISO-31-0 Annex B Rule B.

Comparison
Comparison close
Results
print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance
Filter D: 1 % nominal transmittance at 546 nm

  • Key comparison CCPR-K6

The filter characteristics are detailed in Table 3 on page 7 of the Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of all participants are available in the Annex B of the Final Report.

  • Key comparison EUROMET.PR-K6

The filter standards used are detailed in section 3.1 of the EUROMET.PR-K6 Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of all participants are available in the Annex B of the EUROMET.PR-K6 Final Report.

  • Key comparison EURAMET.PR-K6.1

The filter standards used are detailed in section 3.1 of the EURAMET.PR-K6.1 Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of the participants are available in page 17 of the EURAMET.PR-K6.1 Final Report.

  • Key comparison EURAMET.PR-K6.2

The filter standards used are listed on p. 2 in the EURAMET.PR-K6.2 Final Report. Measurements are carried out for five wavelengths: 380 nm, 400 nm, 500 nm, 600 nm and 700 nm. Measurement results are listed on pp. 4 to 10 in the EURAMET.PR-K6.2 Final Report.

print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance
Filter B: 56 % nominal transmittance at 546 nm

  • Key comparison CCPR-K6

The filter characteristics are detailed in Table 3 on page 7 of the Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of all participants are available in the Annex B of the Final Report.

  • Key comparison EUROMET.PR-K6

The filter standards used are detailed in section 3.1 of the EUROMET.PR-K6 Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of all participants are available in the Annex B of the EUROMET.PR-K6 Final Report.

  • Key comparison EURAMET.PR-K6.1

The filter standards used are detailed in section 3.1 of the EURAMET.PR-K6.1 Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of the participants are available in page 17 of the EURAMET.PR-K6.1 Final Report.

  • Key comparison EURAMET.PR-K6.2

The filter standards used are listed on p. 2 in the EURAMET.PR-K6.2 Final Report. Measurements are carried out for five wavelengths: 380 nm, 400 nm, 500 nm, 600 nm and 700 nm. Measurement results are listed on pp. 4 to 10 in the EURAMET.PR-K6.2 Final Report.

print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance
Filter C: 10 % nominal transmittance at 546 nm

  • Key comparison CCPR-K6

The filter characteristics are detailed in Table 3 on page 7 of the Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of all participants are available in the Annex B of the Final Report.

  • Key comparison EUROMET.PR-K6

The filter standards used are detailed in section 3.1 of the EUROMET.PR-K6 Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of all participants are available in the Annex B of the EUROMET.PR-K6 Final Report.

  • Key comparison EURAMET.PR-K6.1

The filter standards used are detailed in section 3.1 of the EURAMET.PR-K6.1 Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of the participants are available in page 17 of the EURAMET.PR-K6.1 Final Report.

  • Key comparison EURAMET.PR-K6.2

The filter standards used are listed on p. 2 in the EURAMET.PR-K6.2 Final Report. Measurements are carried out for five wavelengths: 380 nm, 400 nm, 500 nm, 600 nm and 700 nm. Measurement results are listed on pp. 4 to 10 in the EURAMET.PR-K6.2 Final Report.

print out

CCPR-K6, EUROMET.PR-K6, EURAMET.PR-K6.1 and EURAMET.PR-K6.2

MEASURAND: Spectral regular transmittance
Filter D: 1 % nominal transmittance at 546 nm

  • Key comparison CCPR-K6

The filter characteristics are detailed in Table 3 on page 7 of the Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of all participants are available in the Annex B of the Final Report.

  • Key comparison EUROMET.PR-K6

The filter standards used are detailed in section 3.1 of the EUROMET.PR-K6 Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of all participants are available in the Annex B of the EUROMET.PR-K6 Final Report.

  • Key comparison EURAMET.PR-K6.1

The filter standards used are detailed in section 3.1 of the EURAMET.PR-K6.1 Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of the participants are available in page 17 of the EURAMET.PR-K6.1 Final Report.

  • Key comparison EURAMET.PR-K6.2

The filter standards used are listed on p. 2 in the EURAMET.PR-K6.2 Final Report. Measurements are carried out for five wavelengths: 380 nm, 400 nm, 500 nm, 600 nm and 700 nm. Measurement results are listed on pp. 4 to 10 in the EURAMET.PR-K6.2 Final Report.

print out

CCPR-K6, EUROMET.PR-K6 and EURAMET.PR-K6.1

MEASURAND: Spectral regular transmittance
Filter E: 0.1 % nominal transmittance at 546 nm

  • Key comparison CCPR-K6

The filter characteristics are detailed in Table 3 on page 7 of the Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of all participants are available in the Annex B of the Final Report.

  • Key comparison EUROMET.PR-K6

The filter standards used are detailed in section 3.1 of the EUROMET.PR-K6 Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of all participants are available in the Annex B of the EUROMET.PR-K6 Final Report.

  • Key comparison EURAMET.PR-K6.1

The filter standards used are detailed in section 3.1 of the EURAMET.PR-K6.1 Final Report.

Measurements are carried out for eight wavelengths: 380 nm, 400 nm, 500 nm, 600 nm, 700 nm, 800 nm, 900 nm, and 1000 nm.
Absolute transmission measurements and associated uncertainties of the participants are available in page 17 of the EURAMET.PR-K6.1 Final Report.
