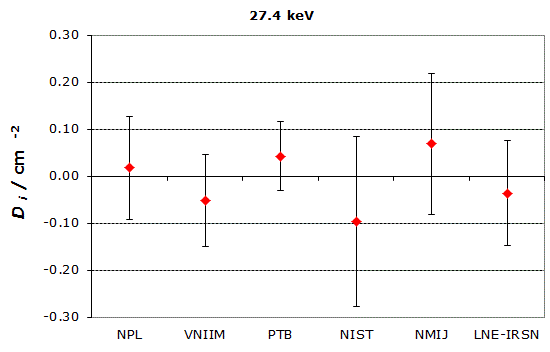

MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 27.4 keV
Degrees of equivalence: Di and Ui (k = 2) expressed in cm-2
-k11_g_27kev.gif)

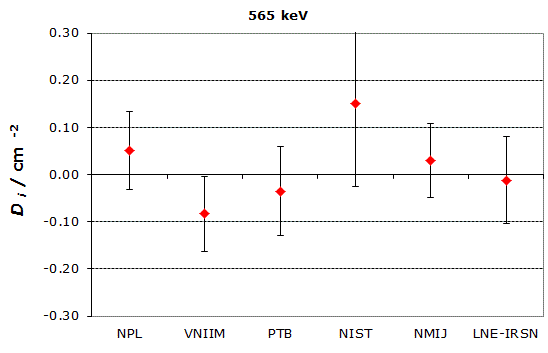

MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 565 keV
Degrees of equivalence: Di and Ui (k = 2) expressed in cm-2
-k11_g_565kev.gif)

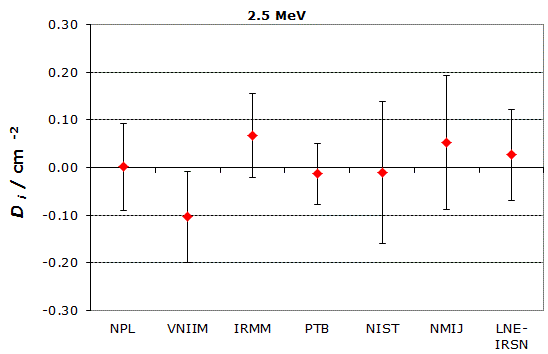

MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 2.5 MeV
Degrees of equivalence: Di and Ui (k = 2) expressed in cm-2
-k11_g_2.5mev.gif)

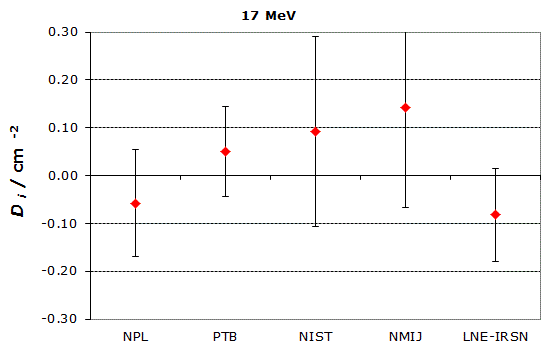

MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 17 MeV
Degrees of equivalence: Di and Ui (k = 2) expressed in cm-2
-k11_g_17mev.gif)
MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 27.4 keV
Degrees of equivalence: Di and Ui (k = 2) expressed in cm-2
-k11_does_27kev.gif)
Results are presented under A4 printable format in Summary Results (PDF file).
MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 565 keV
Degrees of equivalence: Di and Ui (k = 2) expressed in cm-2
-k11_does_565kev.gif)
Results are presented under A4 printable format in Summary Results (PDF file).
MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 2.5 MeV
Degrees of equivalence: Di and Ui (k = 2) expressed in cm-2
-k11_does_2.5mev.gif)
Results are presented under A4 printable format in Summary Results (PDF file).
MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 17 MeV
Degrees of equivalence: Di and Ui (k = 2) expressed in cm-2
-k11_does_17mev.gif)
Results are presented under A4 printable format in Summary Results (PDF file).
| Metrology area, Sub-field | Ionizing Radiation, Section III (Neutron Measurements) |
| Description | Comparison of neutron fluence |
| Time of measurements | 2011 - 2012 |
| Status | Approved for equivalence |
| Final Reports of the comparisons | |
| References | |
| Measurand | Neutron fluence |
| Parameters | Neutron energy: 27.4 keV, 565 keV, 2.5 MeV and 17 MeV |
| Transfer device | All measurements are performed with the participants' instruments in the same neutron fields at the AMANDE accelerator facility |
| Comparison type | Key Comparison |
| Consultative Committee | CCRI (Consultative Committee for Ionizing Radiation) |
| Conducted by | CCRI (Consultative Committee for Ionizing Radiation) |
| Comments | Results published on 21 May 2014 Neutron fluence
|
| Pilot institute |
LNE-IRSN
Institut de Radioprotection et de Sûreté Nucléaire France |
| Contact person | Vincent GRESSIER +33 4 42 19 95 52 |
| Pilot laboratory | |
|---|---|
| LNE-IRSN |
Institut de Radioprotection et de Sûreté Nucléaire, France, EURAMET |
| IRMM |
Institute for Reference Materials and Measurements, European Union, EURAMET |
| LNMRI/IRD |
Laboratorio Nacional de Metrologia das Radiacoes Ionizantes, IRD, Brazil, SIM |
| NIST |
National Institute of Standards and Technology, United States, SIM |
| NMIJ AIST |
National Metrology Institute of Japan, Japan, APMP |
| NPL |
National Physical Laboratory, United Kingdom, EURAMET |
| PTB |
Physikalisch-Technische Bundesanstalt, Germany, EURAMET |
| VNIIM |
D.I. Mendeleyev Institute for Metrology, Rosstandart, Russian Federation, COOMET |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 27.4 keV
|
The key comparison reference value, xR, and its standard uncertainty, uR, are obtained from the weighted mean of the participants' results. xR = 1.752 cm-2 and uR = 0.022 cm-2 |
| The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di = (xi - xR) and Ui, its expanded uncertainty (k = 2), Ui = 2(ui2 - uR2)1/2. |
|
The degree of equivalence between two laboratories i and j is given by a pair of terms: Dij = Di - Dj = xi - xj and Uij, its expanded uncertainty (k = 2), The pair-wise degrees of equivalence are not explicitely given here, but can be found in Table A.3.1 to A.3.4 on page 26 and 27 of the Final Report. |
MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 565 keV
|
The key comparison reference value, xR, and its standard uncertainty, uR, are obtained from the weighted mean of the participants' results. xR = 2.143 cm-2 and uR = 0.028 cm-2 |
| The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di = (xi - xR) and Ui, its expanded uncertainty (k = 2), Ui = 2(ui2 - uR2)1/2. |
|
The degree of equivalence between two laboratories i and j is given by a pair of terms: Dij = Di - Dj = xi - xj and Uij, its expanded uncertainty (k = 2), The pair-wise degrees of equivalence are not explicitely given here, but can be found in Table A.3.1 to A.3.4 on page 26 and 27 of the Final Report. |
MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 2.5 MeV
|
The key comparison reference value, xR, and its standard uncertainty, uR, are obtained from the weighted mean of the participants' results. xR = 2.248 cm-2 and uR = 0.021 cm-2 |
| The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di = (xi - xR) and Ui, its expanded uncertainty (k = 2), Ui = 2(ui2 - uR2)1/2. |
|
The degree of equivalence between two laboratories i and j is given by a pair of terms: Dij = Di - Dj = xi - xj and Uij, its expanded uncertainty (k = 2), The pair-wise degrees of equivalence are not explicitely given here, but can be found in Table A.3.1 to A.3.4 on page 26 and 27 of the Final Report. |
MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 17 MeV
|
The key comparison reference value, xR, and its standard uncertainty, uR, are obtained from the weighted mean of the participants' results. xR = 2.429 cm-2 and uR = 0.042 cm-2 |
| The degree of equivalence of each laboratory i with respect to the key comparison reference value is given by a pair of terms: Di = (xi - xR) and Ui, its expanded uncertainty (k = 2), Ui = 2(ui2 - uR2)1/2. |
|
The degree of equivalence between two laboratories i and j is given by a pair of terms: Dij = Di - Dj = xi - xj and Uij, its expanded uncertainty (k = 2), The pair-wise degrees of equivalence are not explicitely given here, but can be found in Table A.3.1 to A.3.4 on page 26 and 27 of the Final Report. |

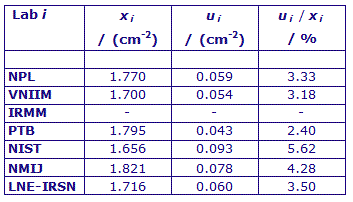

MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 27.4 keV
xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi
All measurements were performed from September 2011 to October 2012.
-k11_lim_27kev.gif)

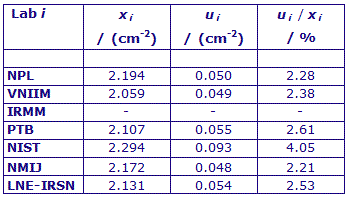

MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 565 keV
xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi
All measurements were performed from September 2011 to October 2012.
-k11_lim_565kev.gif)

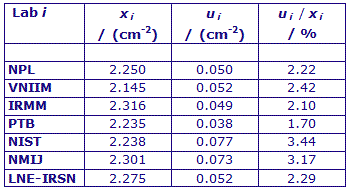

MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 2.5 MeV
xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi
All measurements were performed from September 2011 to October 2012.
-k11_lim_2.5mev.gif)

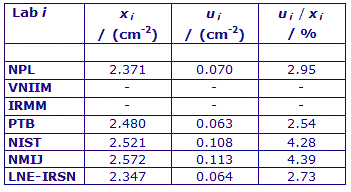

MEASURAND : Fluence per monitor M1-count at 1 m distance from the target in vacuum in cm-2
NEUTRON ENERGY : 17 MeV
xi : result of measurement carried out by laboratory i
ui : combined standard uncertainty of xi
All measurements were performed from September 2011 to October 2012.
-k11_lim_17mev.gif)
