CCM.G-K2.2017 and EURAMET.M.G-K3
MEASURAND Free-fall acceleration
NOMINAL VALUE 9.81 m/s2
Degrees of equivalence represented by Di and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in µGal(1).
The degrees of equivalence have been determined via a weighted least-square adjustment of the measurements results obtainded with each NMI/DI gravimeter.
(1) The gal (symbol: Gal) is a non SI unit of acceleration employed in geodesy and geophysics to express acceleration due to gravity. 1 µGal = 1 x 10-8 m/s2.
AG - Acceleration Gravimeter
The instrument used is indicated within brackets, next to the institute acronym.
CCM.G-K2.2017 and EURAMET.M.G-K3
MEASURAND Free-fall acceleration
NOMINAL VALUE 9.81 m/s2

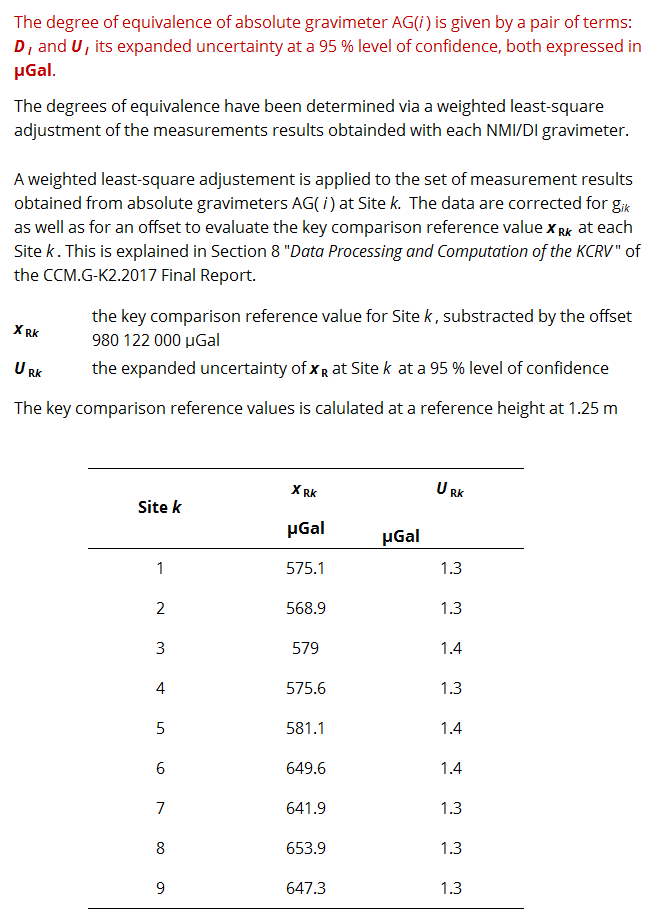

Degrees of equivalence represented by Di and its expanded uncertainty Ui at a 95 % level of confidence, both expressed in µGal(1).
The degrees of equivalence have been determined via a weighted least-square adjustment of the measurements results obtainded with each NMI/DI gravimeter.
| LABi | Di | Uneg,i | Upos,i | |
|---|---|---|---|---|
µGal |
µGal |
µGal |
||
| BEV [FG5-242] | -0.1 | 6.9 | ||
| NIM [NIM-3A] | 0.4 | 6.3 | ||
| VÚGTK/RIGTC [FG5-215H] | -1.0 | 4.5 | ||
| FGI [FG5X-221] | 0.9 | 4.7 | ||
| LNE-SYRTE [FG5-228] | 0.3 | 5.5 | ||
| NMIJ AIST [FG5-213] | 0.0 | 6.5 | ||
| LGUL [FG5X-216] | 0.9 | 4.9 | ||
| KRISS [FG5X-104] | -0.6 | 4.3 | ||
| SASO-NMCC [FG5X-253] | -0.5 | 4.9 | ||
| METAS [FG5X-209] | 3.9 | 7.9 | ||
| NIMT [FG5X-248] | -0.7 | 4.7 | ||
| UME [FG5X-254] | -2.7 | 4.9 | ||
| NIST [FG5-204] | 1.3 | 3.9 | ||
| VÚGTK/RIGTC [FG5-215H] | -1.2 | 5.0 | ||
| BEV [FG5-242] | -1.1 | 5.5 | ||
| FGI [FG5X-221] | 1.1 | 5.3 | ||
| UME [FG5X-254] | -2.0 | 5.2 | ||
| INRIM [IMGC-02] | -1.1 | 10.9 |
(1) The gal (symbol: Gal) is a non SI unit of acceleration employed in geodesy and geophysics to express acceleration due to gravity. 1 µGal = 1 x 10-8 m/s2.
The instrument used is indicated within brackets, next to the institute acronym.
| Metrology area, Sub-field | Mass and related quantities, Gravity |
| Description | Comparison of absolute gravimeters |
| Time of measurements | 2017 |
| Status | Approved for equivalence |
| Final Reports of the comparisons | |
| Measurand | Free-fall acceleration at 9.81 m/s2 |
| Transfer device | Absolute gravimeter |
| Comparison type | Key Comparison |
| Consultative Committee | CCM (Consultative Committee for Mass and Related Quantities) |
| Conducted by | CCM (Consultative Committee for Mass and Related Quantities) |
| Comments | Results published on the KCDB web on 24 February 2020
|
| Pilot institute |
NIM
National Institute of Metrology China |
| Contact person | Wu Shuqing +86 10 6452 6003 / +86 10 6452 4565 |
| Pilot laboratory | |
|---|---|
| NIM |
National Institute of Metrology, China, APMP |
| BEV |
Bundesamt für Eich- und Vermessungswesen, Austria, EURAMET |
| FGI |
Finnish Geospatial Research Institute, Finland, EURAMET |
| KRISS |
Korea Research Institute of Standards and Science, Korea, Republic of, APMP |
| LGUL |
Laboratory of Geophysics of the University of Luxembourg, Luxembourg, EURAMET |
| LNE-SYRTE |
Observatoire de Paris/Systèmes de Référence Temps-Espace, France, EURAMET |
| METAS |
Federal Institute of Metrology, Switzerland, EURAMET |
| NIMT |
National Institute of Metrology (Thailand), Thailand, APMP |
| NIST |
National Institute of Standards and Technology, United States, SIM |
| NMIJ AIST |
National Metrology Institute of Japan, Japan, APMP |
| SASO-NMCC |
National Measurement and Calibration Center - Saudi Standards, Metrology and Quality Organization, Saudi Arabia, GULFMET |
| UME |
TÜBITAK Ulusal Metroloji Enstitüsü, Türkiye, EURAMET |
| VUGTK/RIGTC |
Research Institute of Geodesy, Topography and Cartography, Czechia, EURAMET |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCM.G-K2.2017 and EURAMET.M.G-K3
MEASURAND Free-fall acceleration
NOMINAL VALUE 9.81 m/s2
The gal (symbol: Gal) is a non SI unit of acceleration employed in geodesy and geophysics to express acceleration due to gravity. 1 µGal = 1 x 10-8 m/s2.
Linking EURAMET.M.G-K3 to CCM.G-K2.2017
The results issued from EURAMET.M.G-K3 were linked to CCM.G-K2.2017 via VUGTK/RIGTC (Czechia), BEV (Austria), FGI (Finland) and UME (Turkey) who participated in both comparisons, see EURAMET.M.G-K3 Final Report.
CCM.G-K2.2017 and EURAMET.M.G-K3
MEASURAND Free-fall acceleration
NOMINAL VALUE 9.81 m/s2

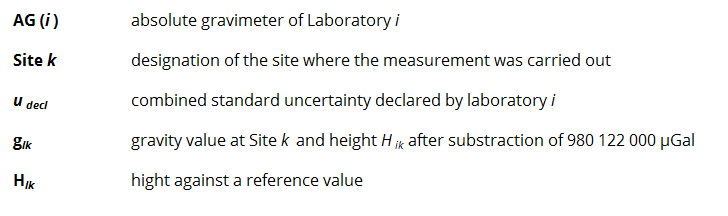

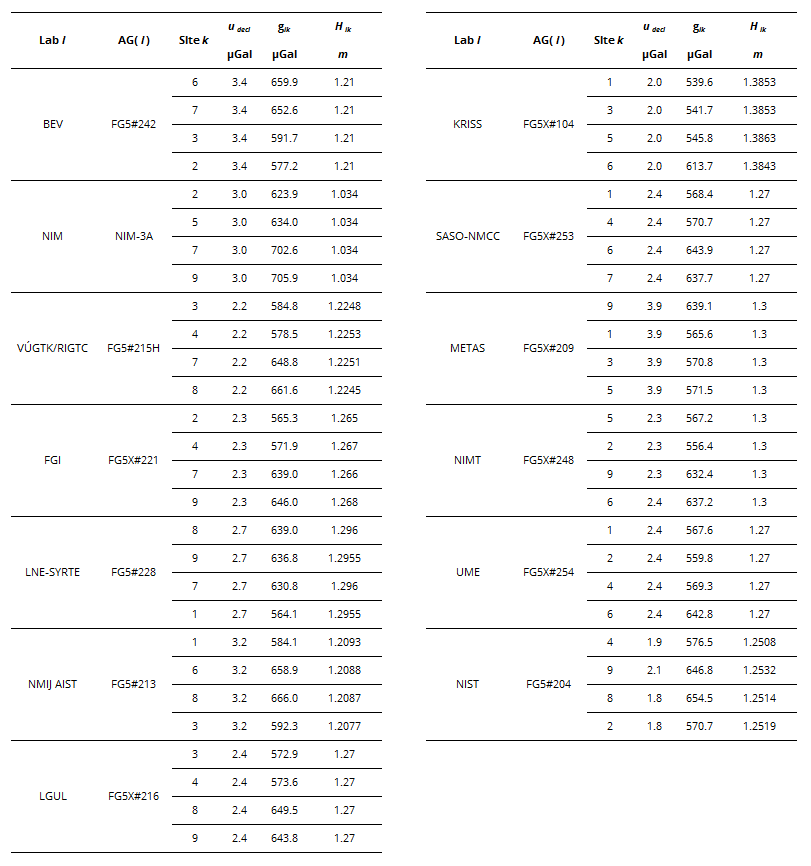

CCM.G-K2.2017
The gal (symbol: Gal) is a non SI unit of acceleration employed in geodesy and geophysics to express acceleration due to gravity. 1 µGal = 1 x 10-8 m/s2.

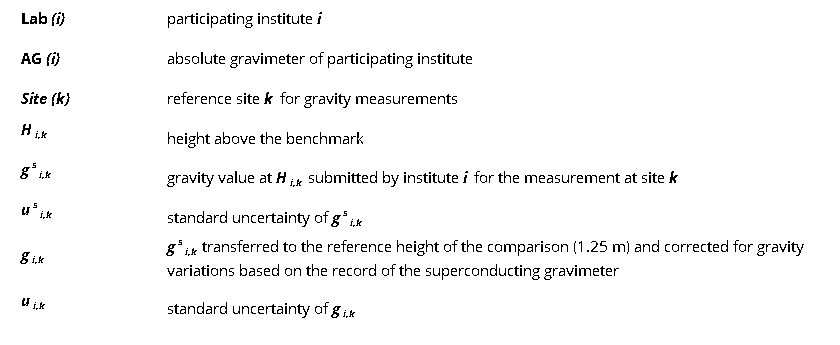

EURAMET.M.G-K3
The gal (symbol: Gal) is a non SI unit of acceleration employed in geodesy and geophysics to express acceleration due to gravity. 1 µGal = 1 x 10-8 m/s2
