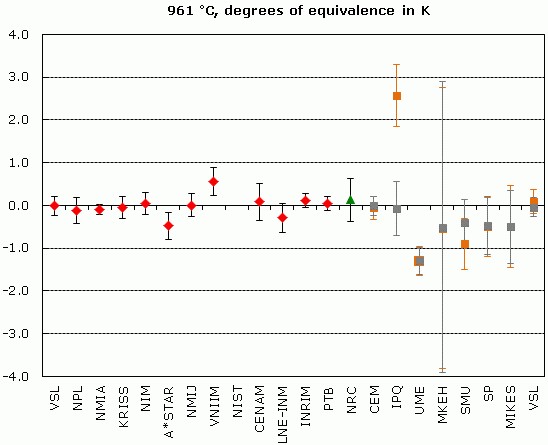

Comparison Display

CCT-K5, CCT-K5.1 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 961 °C

Degrees of equivalence:
D_i and expanded uncertainty U_i (k = 2), both expressed in K

Red diamonds: participants in CCT-K5
Green triangle: participant in CCT-K5.1
Orange squares: participants in EUROMET.T-K5 (measurements with Lamp S/N C564)Grey squares: participants in EUROMET.T-K5 (measurements with Lamp S/N C681)

print out

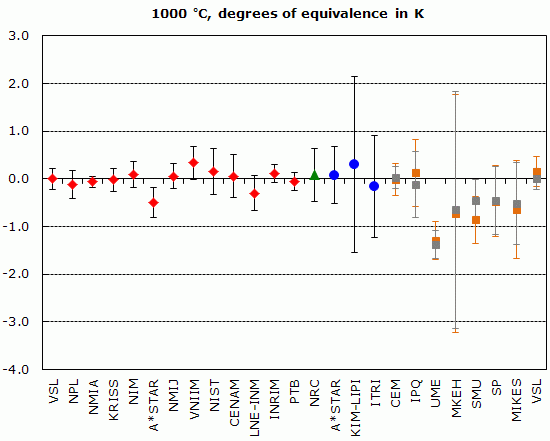

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1000 °C

Degrees of equivalence:
D_i and expanded uncertainty U_i (k = 2), both expressed in K

Red diamonds: participants in CCT-K5
Green triangle: participant in CCT-K5.1
Blue circles: participants in APMP.T-K5
Orange squares: participants in EUROMET.T-K5 (measurements with Lamp S/N C564)
Grey squares: participants in EUROMET.T-K5 (measurements with Lamp S/N C681)

print out

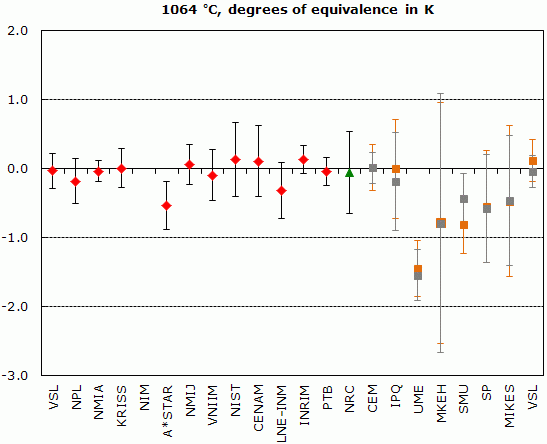

CCT-K5, CCT-K5.1 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1064 °C

Degrees of equivalence:
D_i and expanded uncertainty U_i (k = 2), both expressed in K

print out

CCT-K5, CCT-K5.1, APMP.T-K5, COOMET.T-K5 and EUROMET.T-K5

MEASURAND : Temperature

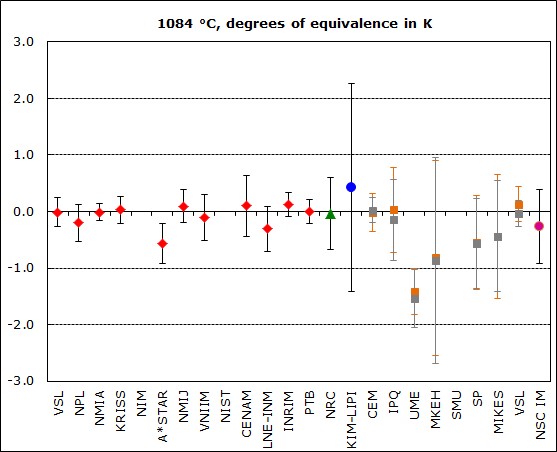

NOMINAL TEMPERATURE : T_nom = 1084 °C

Degrees of equivalence:
D_i and expanded uncertainty U_i (k = 2), both expressed in K

Red diamonds: participants in CCT-K5
Green triangle: participant in CCT-K5.1
Blue circle: participant in APMP.T-K5
Purple circle: participant in COOMET.T-K5.1
Orange squares: participants in EUROMET.T-K5 (measurements with Lamp S/N C564)
Grey squares: participants in EUROMET.T-K5 (measurements with Lamp S/N C681)

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature

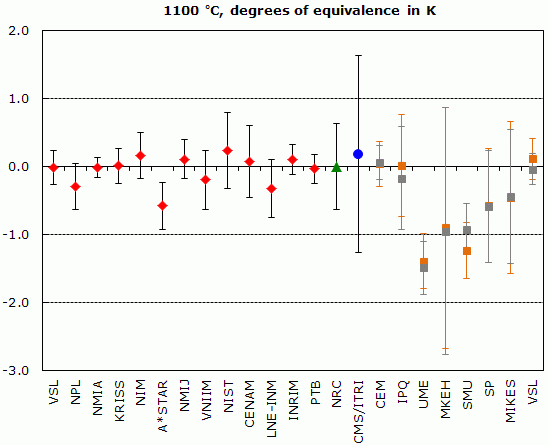

NOMINAL TEMPERATURE : T_nom = 1100 °C

Degrees of equivalence:
D_i and expanded uncertainty U_i (k = 2), both expressed in K

Red diamonds: participants in CCT-K5
Green triangle: participant in CCT-K5.1
Blue circle: participant in APMP.T-K5
Orange squares: participants in EUROMET.T-K5 (measurements with Lamp S/N C564)
Grey squares: participants in EUROMET.T-K5 (measurements with Lamp S/N C681)

print out

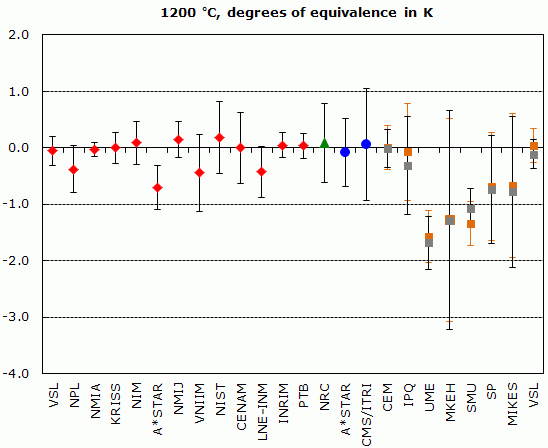

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1200 °C

Degrees of equivalence:
D_i and expanded uncertainty U_i (k = 2), both expressed in K

print out

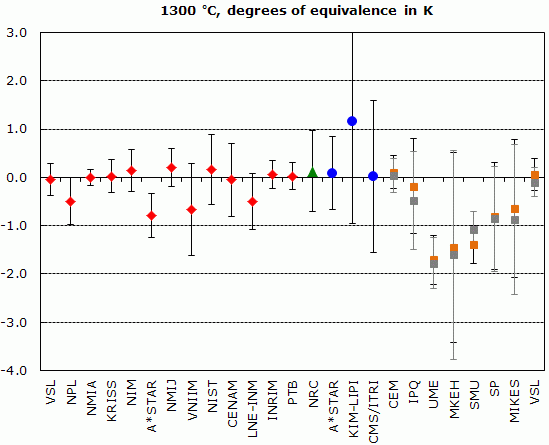

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1300 °C

Degrees of equivalence:
D_i and expanded uncertainty U_i (k = 2), both expressed in K

print out

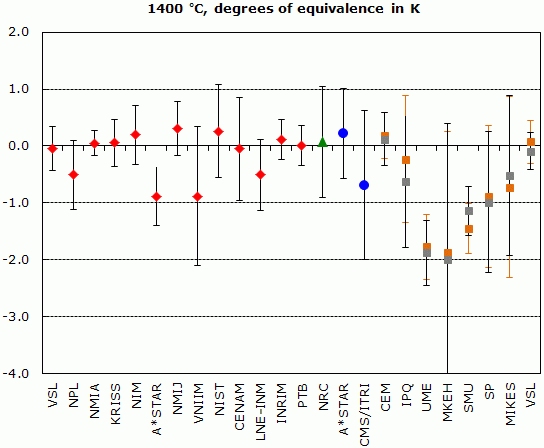

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1400 °C

Degrees of equivalence:
D_i and expanded uncertainty U_i (k = 2), both expressed in K

print out

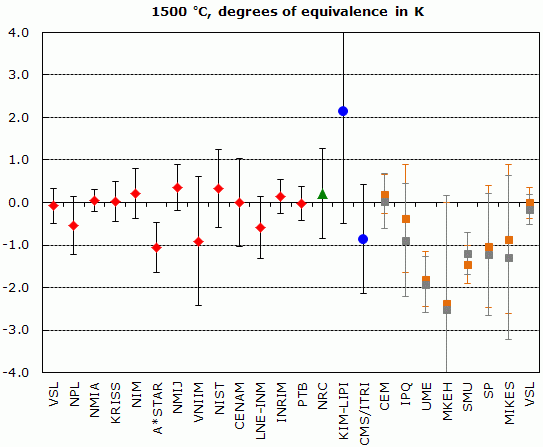

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1500 °C

Degrees of equivalence:
D_i and expanded uncertainty U_i (k = 2), both expressed in K

print out

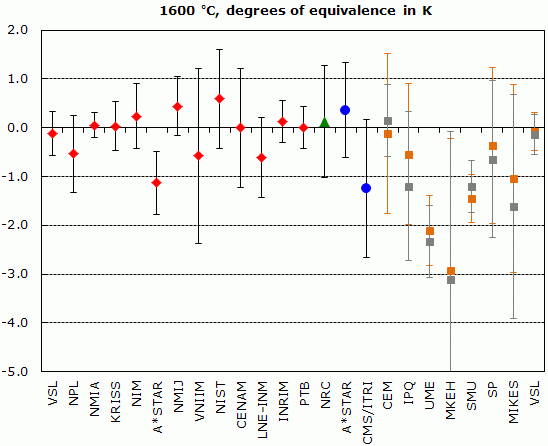

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1600 °C

Degrees of equivalence:
D_i and expanded uncertainty U_i (k = 2), both expressed in K

print out

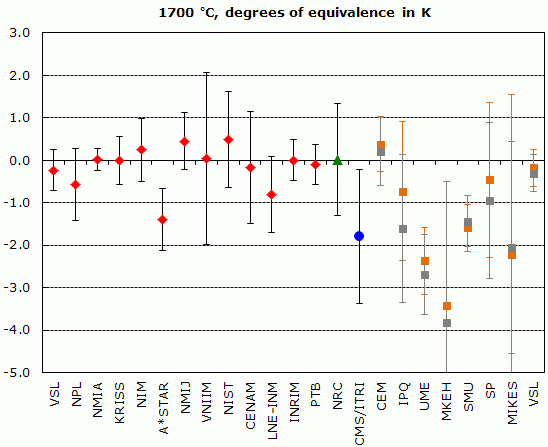

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1700 °C

Degrees of equivalence:
D_i and expanded uncertainty U_i (k = 2), both expressed in K

print out

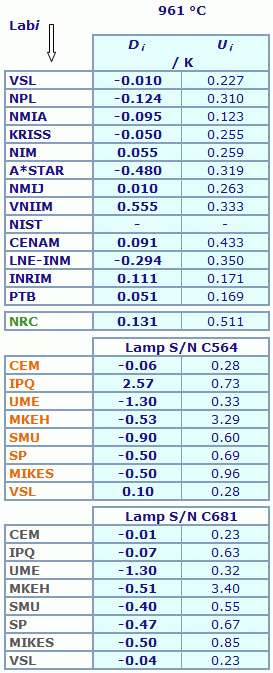

CCT-K5, CCT-K5.1 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 961 °C

Degrees of equivalence relative to the CCT-K5 key comparison reference value:

Dark blue: participants in CCT-K5
Green: participant in CCT-K5.1
Orange: participants in EUROMET.T-K5 (measurements with Lamp S/N C564)
Grey: participants in EUROMET.T-K5 (measurements with Lamp S/N C681)

Pair-wise degrees of equivalence are computed for CCT-K5 and CCT-K5.1 only.


Lab i	D_i	U_i
	/ K	/ K
VSL	-0.010	0.227
NPL	-0.124	0.310
NMIA	-0.095	0.123
KRISS	-0.050	0.255
NIM	0.055	0.259
A*STAR	-0.480	0.319
NMIJ	0.010	0.263
VNIIM	0.555	0.333
NIST	-	-
CENAM	0.091	0.433
LNE-INM	-0.294	0.350
INRIM	0.111	0.171
PTB	0.051	0.169
NRC	0.131	0.511

Results are presented under A4 printable format in Summary Results (PDF file).

print out

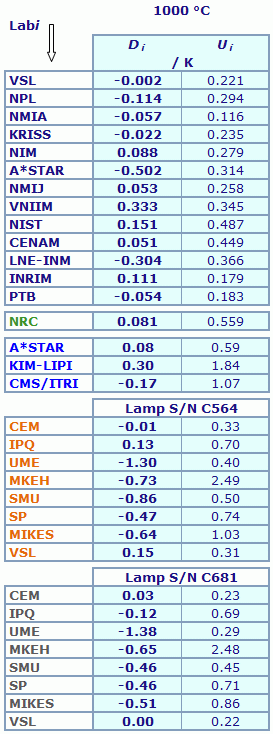

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1000 °C

Degrees of equivalence relative to the CCT-K5 key comparison reference value:

Dark blue: participants in CCT-K5
Green: participant in CCT-K5.1
Blue: participants in APMP.T-K5
Orange: participants in EUROMET.T-K5 (measurements with Lamp S/N C564)
Grey: participants in EUROMET.T-K5 (measurements with Lamp S/N C681)

Pair-wise degrees of equivalence are computed for CCT-K5 and CCT-K5.1 only.


Lab i	D_i	U_i
	/ K	/ K
VSL	-0.002	0.221
NPL	-0.114	0.294
NMIA	-0.057	0.116
KRISS	-0.022	0.235
NIM	0.088	0.279
A*STAR	-0.502	0.314
NMIJ	0.053	0.258
VNIIM	0.333	0.345
NIST	0.151	0.487
CENAM	0.051	0.449
LNE-INM	-0.304	0.366
INRIM	0.111	0.179
PTB	-0.054	0.183
NRC	0.081	0.559

Results are presented under A4 printable format in Summary Results (PDF file).

print out

CCT-K5, CCT-K5.1 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1064 °C

Degrees of equivalence relative to the CCT-K5 key comparison reference value:

Dark blue: participants in CCT-K5
Green: participant in CCT-K5.1
Orange: participants in EUROMET.T-K5 (measurements with Lamp S/N C564)
Grey: participants in EUROMET.T-K5 (measurements with Lamp S/N C681)

Pair-wise degrees of equivalence are computed for CCT-K5 and CCT-K5.1 only.


Lab i	D_i	U_i
	/ K	/ K
VSL	-0.033	0.257
NPL	-0.181	0.329
NMIA	-0.038	0.155
KRISS	0.007	0.279
NIM	-	-
A*STAR	-0.538	0.350
NMIJ	0.062	0.291
VNIIM	-0.093	0.365
NIST	0.134	0.536
CENAM	0.104	0.515
LNE-INM	-0.316	0.401
INRIM	0.129	0.206
PTB	-0.046	0.205
NRC	-0.061	0.597

Results are presented under A4 printable format in Summary Results (PDF file).

print out

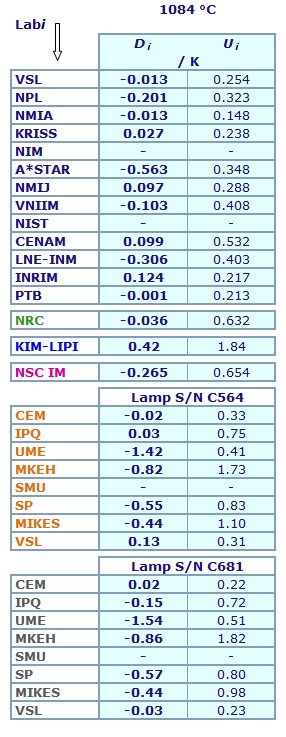

CCT-K5, CCT-K5.1, APMP.T-K5, COOMET.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1084 °C

Degrees of equivalence relative to the CCT-K5 key comparison reference value:

Dark blue: participants in CCT-K5
Green: participant in CCT-K5.1
Blue: participant in APMP.T-K5
Purple: participant in COOMET.T-K5.1
Orange: participants in EUROMET.T-K5 (measurements with Lamp S/N C564)
Grey: participants in EUROMET.T-K5 (measurements with Lamp S/N C681)

Results are presented under A4 printable format in Summary Results (PDF file).

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature

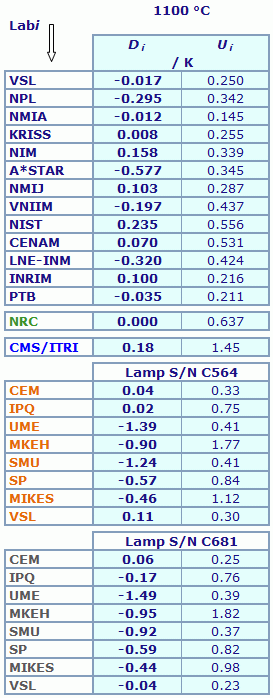

NOMINAL TEMPERATURE : T_nom = 1100 °C

Degrees of equivalence relative to the CCT-K5 key comparison reference value:

Dark blue: participants in CCT-K5
Green: participant in CCT-K5.1
Blue: participant in APMP.T-K5
Orange: participants in EUROMET.T-K5 (measurements with Lamp S/N C564)
Grey: participants in EUROMET.T-K5 (measurements with Lamp S/N C681)

Pair-wise degrees of equivalence are computed for CCT-K5 and CCT-K5.1 only.


Lab i	D_i	U_i
	/ K	/ K
VSL	-0.017	0.250
NPL	-0.295	0.342
NMIA	-0.012	0.145
KRISS	0.008	0.255
NIM	0.158	0.339
A*STAR	-0.577	0.345
NMIJ	0.103	0.287
VNIIM	-0.197	0.437
NIST	0.235	0.556
CENAM	0.070	0.531
LNE-INM	-0.320	0.424
INRIM	0.100	0.216
PTB	-0.035	0.211
NRC	0.000	0.637

Results are presented under A4 printable format in Summary Results (PDF file).

print out

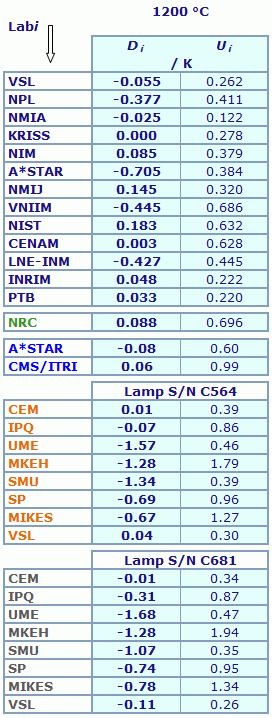

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1200 °C

Degrees of equivalence relative to the CCT-K5 key comparison reference value:

Pair-wise degrees of equivalence are computed for CCT-K5 and CCT-K5.1 only.


Lab i	D_i	U_i
	/ K	/ K
VSL	-0.055	0.262
NPL	-0.377	0.411
NMIA	-0.025	0.122
KRISS	0.000	0.278
NIM	0.085	0.379
A*STAR	-0.705	0.384
NMIJ	0.145	0.320
VNIIM	-0.445	0.686
NIST	0.183	0.632
CENAM	0.003	0.628
LNE-INM	-0.427	0.445
INRIM	0.048	0.222
PTB	0.033	0.220
NRC	0.088	0.696

Results are presented under A4 printable format in Summary Results (PDF file).

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1300 °C

Degrees of equivalence relative to the CCT-K5 key comparison reference value:

Pair-wise degrees of equivalence are computed for CCT-K5 and CCT-K5.1 only.


Lab i	D_i	U_i
	/ K	/ K
VSL	-0.045	0.322
NPL	-0.497	0.486
NMIA	0.000	0.165
KRISS	0.020	0.343
NIM	0.140	0.437
A*STAR	-0.795	0.459
NMIJ	0.210	0.393
VNIIM	-0.660	0.956
NIST	0.164	0.719
CENAM	-0.047	0.755
LNE-INM	-0.492	0.580
INRIM	0.064	0.284
PTB	0.024	0.283
NRC	0.129	0.835

Results are presented under A4 printable format in Summary Results (PDF file).

print out

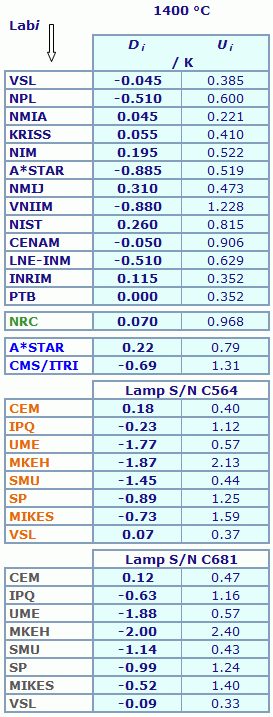

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1400 °C

Degrees of equivalence relative to the CCT-K5 key comparison reference value:

Pair-wise degrees of equivalence are computed for CCT-K5 and CCT-K5.1 only.


Lab i	D_i	U_i
	/ K	/ K
VSL	-0.045	0.385
NPL	-0.510	0.600
NMIA	0.045	0.221
KRISS	0.055	0.410
NIM	0.195	0.522
A*STAR	-0.885	0.519
NMIJ	0.310	0.473
VNIIM	-0.880	1.228
NIST	0.260	0.815
CENAM	-0.050	0.906
LNE-INM	-0.510	0.629
INRIM	0.115	0.352
PTB	0.000	0.352
NRC	0.070	0.968

Results are presented under A4 printable format in Summary Results (PDF file).

print out

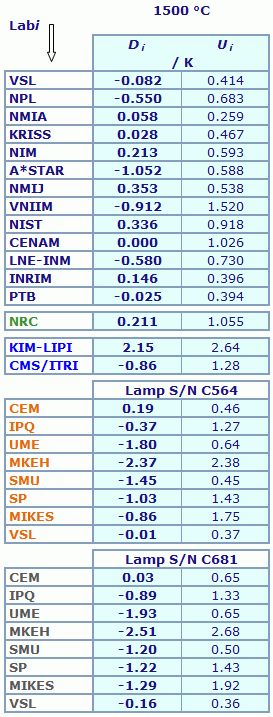

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1500 °C

Degrees of equivalence relative to the CCT-K5 key comparison reference value:

Pair-wise degrees of equivalence are computed for CCT-K5 and CCT-K5.1 only.


Lab i	D_i	U_i
	/ K	/ K
VSL	-0.082	0.414
NPL	-0.550	0.683
NMIA	0.058	0.259
KRISS	0.028	0.467
NIM	0.213	0.593
A*STAR	-1.052	0.588
NMIJ	0.353	0.538
VNIIM	-0.912	1.520
NIST	0.336	0.918
CENAM	0.000	1.026
LNE-INM	-0.580	0.730
INRIM	0.146	0.396
PTB	-0.025	0.394
NRC	0.211	1.055

Results are presented under A4 printable format in Summary Results (PDF file).

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1600 °C

Degrees of equivalence relative to the CCT-K5 key comparison reference value:

Pair-wise degrees of equivalence are computed for CCT-K5 and CCT-K5.1 only.


Lab i	D_i	U_i
	/ K	/ K
VSL	-0.113	0.452
NPL	-0.540	0.781
NMIA	0.053	0.262
KRISS	0.028	0.502
NIM	0.238	0.660
A*STAR	-1.133	0.652
NMIJ	0.443	0.599
VNIIM	-0.578	1.797
NIST	0.591	1.014
CENAM	-0.005	1.224
LNE-INM	-0.615	0.820
INRIM	0.126	0.436
PTB	0.001	0.433
NRC	0.121	1.146

Results are presented under A4 printable format in Summary Results (PDF file).

print out

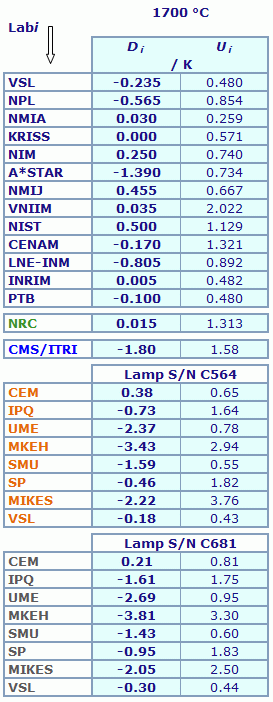

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1700 °C

Degrees of equivalence relative to the CCT-K5 key comparison reference value:

Pair-wise degrees of equivalence are computed for CCT-K5 and CCT-K5.1 only.


Lab i	D_i	U_i
	/ K	/ K
VSL	-0.235	0.480
NPL	-0.565	0.854
NMIA	0.030	0.259
KRISS	0.000	0.571
NIM	0.250	0.740
A*STAR	-1.390	0.734
NMIJ	0.455	0.667
VNIIM	0.035	2.022
NIST	0.500	1.129
CENAM	-0.170	1.321
LNE-INM	-0.805	0.892
INRIM	0.005	0.482
PTB	-0.100	0.480
NRC	0.015	1.313

Results are presented under A4 printable format in Summary Results (PDF file).

Comparison

Comparison close

EUROMET.T-K5

print out

Information & contact
Participants

Metrology area, Sub-field	Thermometry, Pyrometry
Description	Realizations of the ITS-90 up to 1700 °C
Time of measurements	1999 - 2001
Status	Approved for equivalence

Final Reports of the comparisons	EUROMET.T-K5 Final Report, 2013, 106 pages Metrologia, 2013, 50, Tech. Suppl., 03005
Measurand	Temperature: 962 °C to 1700 °C
Transfer device	Two tungsten strip lamps

Comparison type	Key Comparison
Consultative Committee	CCT (Consultative Committee for Thermometry)
Conducted by	EURAMET (European Association of National Metrology Institutes)
RMO Internal Identifier	EUROMET Project No 412
Comments	Results published on 24 March 2013 CCT-K5.1, APMP.T-K5, COOMET.T-K5 and EUROMET.T-K5 results are linked to those of CCT-K5 Realizations of the ITS-90 between 961 °C and 1700 °C
Pilot institute	VSL VSL Netherlands
Contact person	E. Moreno Vuelban +31 (0) 15 269 1643

Pilot laboratory
VSL	VSL, Netherlands, EURAMET

CEM	Centro Español de Metrologia, Spain, EURAMET

IPQ	Instituto Portugues da Qualidade, Portugal, EURAMET

MIKES

VTT Technical Research Centre of Finland Ltd, Centre for Metrology/Mittatekniikan keskus, Finland, EURAMET

MKEH	Hungarian Trade Licensing Office; now BFKH, Hungary, EURAMET

SMU	Slovensky Metrologicky Ustav, Slovakia, EURAMET

SP	Technical Research Institute of Sweden from 2017 Research Institutes of Sweden AB, Sweden, EURAMET

UME	TÜBITAK Ulusal Metroloji Enstitüsü, Türkiye, EURAMET

print out

CCT-K5, CCT-K5.1 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 961 °C

Key comparison CCT-K5

The key comparison reference value T_Rfor each nominal temperature T_nom and each lamp k is calculated on the basis of the median of measured radiance temperatures T_i(k, T_nom). Its standard uncertainty, u(T_R), is obtained as the standard uncertainty of the median.

For each temperature T_nom the degree of equivalence of laboratory iwith respect to the key comparison reference value is given by a pair of terms: D_iand its expanded uncertainty U_i (k = 2) both expressed in K. The computation of D_i and U_iis explained in the Addendum to the CCT-K5 Final Report.

For each temperature T_nom the pair-wise degree of equivalence between laboratories i and j is given by a pair of terms: D_ij and its expanded uncertainty U_ij (k = 2) both expressed in K. The computation of D_ij and U_ij is also explained in the Addendum to the CCT-K5 Final Report.

Linking CCT-K5.1 results to those of CCT-K5

The linkage is made through the common participation of PTB in both key comparisons, and is detailed in the CCT-K5 and CCT-K5.1 Linkage Report.

There are no APMP.T-K5 results to be linked to those of CCT-K5 for this nominal temperature.

Linking key comparison EUROMET.T-K5 to CCT-K5

The measurements of the EUROMET.T-K5 participants are directly linked to the key comparison reference value obtained in CCT-K5 as the protocols of the two key comparisons are identical and the transfer standards are the same (see in Chapter VII of the EUROMET.T-K5 Final Report).

Degrees of equivalence relative to the CCT-K5 key comparison reference values are computed for each of the transfer standards. Pair-wise degrees of equivalence inside EUROMET.T-K5 are available in the EUROMET.T-K5 Final Report (Tables 15 to 36).

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1000 °C

Key comparison CCT-K5

Linking CCT-K5.1 results to those of CCT-K5

The linkage is made through the common participation of PTB in both key comparisons, and is detailed in the CCT-K5 and CCT-K5.1 Linkage Report.

Linking APMP.T-K5 results to those of CCT-K5

The linkage is made through the common participation of NMIJ, NIM, KRISS and NMIA in both key comparisons, and is detailed in the Addendum to the APMP.T-K5 Final Report.

Linking key comparison EUROMET.T-K5 to CCT-K5

print out

CCT-K5, CCT-K5.1 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1064 °C

Key comparison CCT-K5

Linking CCT-K5.1 results to those of CCT-K5

The linkage is made through the common participation of PTB in both key comparisons, and is detailed in the CCT-K5 and CCT-K5.1 Linkage Report.

Linking key comparison EUROMET.T-K5 to CCT-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5, COOMET.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1084 °C

Key comparison CCT-K5

Linking CCT-K5.1 results to those of CCT-K5

The linkage is made through the common participation of PTB in both key comparisons, and is detailed in the CCT-K5 and CCT-K5.1 Linkage Report.

Linking APMP.T-K5 results to those of CCT-K5

The linkage is made through the common participation of NMIJ, NIM, KRISS and NMIA in both key comparisons, and is detailed in the Addendum to the APMP.T-K5 Final Report.

Linking COOMET.T-K5 results to those of CCT-K5

The linkage is made through the common participation of VIIM in both key comparisons, and is detailed in the COOMET.T-K5 Final Report.

Linking key comparison EUROMET.T-K5 to CCT-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1100 °C

Key comparison CCT-K5

Linking CCT-K5.1 results to those of CCT-K5

The linkage is made through the common participation of PTB in both key comparisons, and is detailed in the CCT-K5 and CCT-K5.1 Linkage Report.

Linking APMP.T-K5 results to those of CCT-K5

The linkage is made through the common participation of NMIJ, NIM, KRISS and NMIA in both key comparisons, and is detailed in the Addendum to the APMP.T-K5 Final Report.

Linking key comparison EUROMET.T-K5 to CCT-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1200 °C

Key comparison CCT-K5

Linking CCT-K5.1 results to those of CCT-K5

The linkage is made through the common participation of PTB in both key comparisons, and is detailed in the CCT-K5 and CCT-K5.1 Linkage Report.

Linking APMP.T-K5 results to those of CCT-K5

The linkage is made through the common participation of NMIJ, NIM, KRISS and NMIA in both key comparisons, and is detailed in the Addendum to the APMP.T-K5 Final Report.

Linking key comparison EUROMET.T-K5 to CCT-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1300 °C

Key comparison CCT-K5

Linking CCT-K5.1 results to those of CCT-K5

The linkage is made through the common participation of PTB in both key comparisons, and is detailed in the CCT-K5 and CCT-K5.1 Linkage Report.

Linking APMP.T-K5 results to those of CCT-K5

The linkage is made through the common participation of NMIJ, NIM, KRISS and NMIA in both key comparisons, and is detailed in the Addendum to the APMP.T-K5 Final Report.

Linking key comparison EUROMET.T-K5 to CCT-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1400 °C

Key comparison CCT-K5

Linking CCT-K5.1 results to those of CCT-K5

The linkage is made through the common participation of PTB in both key comparisons, and is detailed in the CCT-K5 and CCT-K5.1 Linkage Report.

Linking APMP.T-K5 results to those of CCT-K5

The linkage is made through the common participation of NMIJ, NIM, KRISS and NMIA in both key comparisons, and is detailed in the Addendum to the APMP.T-K5 Final Report.

Linking key comparison EUROMET.T-K5 to CCT-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1500 °C

Key comparison CCT-K5

Linking CCT-K5.1 results to those of CCT-K5

The linkage is made through the common participation of PTB in both key comparisons, and is detailed in the CCT-K5 and CCT-K5.1 Linkage Report.

Linking APMP.T-K5 results to those of CCT-K5

The linkage is made through the common participation of NMIJ, NIM, KRISS and NMIA in both key comparisons, and is detailed in the Addendum to the APMP.T-K5 Final Report.

Linking key comparison EUROMET.T-K5 to CCT-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1600 °C

Key comparison CCT-K5

Linking CCT-K5.1 results to those of CCT-K5

The linkage is made through the common participation of PTB in both key comparisons, and is detailed in the CCT-K5 and CCT-K5.1 Linkage Report.

Linking APMP.T-K5 results to those of CCT-K5

The linkage is made through the common participation of NMIJ, NIM, KRISS and NMIA in both key comparisons, and is detailed in the Addendum to the APMP.T-K5 Final Report.

Linking key comparison EUROMET.T-K5 to CCT-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1700 °C

Key comparison CCT.T-K5

Linking CCT-K5.1 results to those of CCT-K5

The linkage is made through the common participation of PTB in both key comparisons, and is detailed in the CCT-K5 and CCT-K5.1 Linkage Report.

Linking APMP.T-K5 results to those of CCT-K5

The linkage is made through the common participation of NMIJ, NIM, KRISS and NMIA in both key comparisons, and is detailed in the Addendum to the APMP.T-K5 Final Report.

Linking key comparison EUROMET.T-K5 to CCT-K5

print out

CCT-K5, CCT-K5.1 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 961 °C

Key comparison CCT-K5

Four Tungsten-strip lamps were used as transfer standards for radiance temperature measurements at specific currents corresponding to each nominal temperature T_nom. To shorten the measurement time significantly the set of transfer standards was split in two sets of two lamps for simultaneous comparisons in two loops. The pilot of each loop measured both lamp sets in order to establish a linkage mechanism described on page 19 of the CCT-K5 Final Report.

T_i : temperature value measured by laboratory i
u_i : standard uncertainty of T_i
Lamp S/N C564

Lab i
T_i / °C u_i / °C VSL 964.050 0.10 NMIA 963.950 0.02 KRISS 963.910 0.09 NIM 964.070 0.11 A*STAR 963.690 0.15 NMIJ 964.070 0.12 VNIIM

964.660

0.16

Lamp S/N C681

Lab i
T_i / °C u_i / °C VSL 963.550 0.10 NMIA 963.480 0.02 KRISS 963.610 0.09 NIM 963.660 0.11 A*STAR 962.970 0.15 NMIJ 963.570 0.12 VNIIM

964.070

0.16

Lamp S/N C860

Lab i
T_i / °C u_i / °C NPL 962.000 0.14 NIST - - CENAM 962.260 0.21 LNE-INM 961.710 0.13 INRIM 962.360 0.07 PTB 962.340 0.15 Lamp S/N C864

Lab i

T_i / °C u_i/ °C NPL 962.130 0.14 NIST - - CENAM 962.300 0.21 LNE-INM 962.080 0.13 INRIM 962.240 0.07 PTB 962.140 0.15

Key comparison CCT-K5.1

This is a bilateral comparison between the PTB and the NRC.

T_NRC : temperature value measured at the NRC
u_NRC : standard uncertainty of T_NRC

Lamp S/N C598, T_N_RC = 962.22 °C, u_NRC = 0.19 °C

Lamp S/N 644C, T_N_RC = 962.22 °C, u_NRC = 0.19 °C

Key comparison EUROMET.T-K5

This comparison involved eight participants and was carried out from October 1999 to February 2001.
The two transfer standards were Lamp S/N C564 and Lamp S/N C681 already used in CCT-K5.
The individual laboratory measurements and their uncertainties are given in Tables 5 to 11 of the EUROMET.T-K5 Final Report.

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1000 °C

Key comparison CCT-K5

T_i : temperature value measured by laboratory i
u_i : standard uncertainty of T_i
Lamp S/N C564

Lab i
T_i / °C u_i / °C VSL 1002.078 0.10 NMIA 1001.998 0.02 KRISS 1001.978 0.09 NIM 1002.098 0.12 A*STAR 1001.678 0.15 NMIJ 1002.128 0.12 VNIIM

1002.568

0.16

Lamp S/N C681

Lab i
T_i / °C u_i / °C VSL 1001.808 0.10 NMIA 1001.778 0.02 KRISS 1001.868 0.09 NIM 1001.968 0.12 A*STAR 1001.208 0.15 NMIJ 1001.868 0.12 VNIIM

1001.988

0.16

Lamp S/N C860

Lab i
T_i / °C u_i / °C NPL 1000.124 0.14 NIST 1000.464 0.24 CENAM 1000.294 0.22 LNE-INM 999.754 0.14 INRIM 1000.414 0.08 PTB 1000.284 0.16 Lamp S/N C864

Lab i

T_i / °C u_i/ °C NPL 1000.118 0.14 NIST 1000.308 0.24 CENAM 1000.278 0.22 LNE-INM 1000.108 0.14 INRIM 1000.278 0.08 PTB 1000.078 0.16

Key comparison CCT-K5.1

This is a bilateral comparison between the PTB and the NRC.

T_NRC : temperature value measured at the NRC
u_NRC : standard uncertainty of T_NRC

Lamp S/N C598, T_N_RC = 999.95 °C, u_NRC = 0.20 °C

Lamp S/N 644C, T_N_RC = 1000.14 °C, u_NRC = 0.20 °C

Key comparison APMP.T-K5

Laboratory individual measurements of APMP.T-K5 participants are given in Appendix B of the APMP.T-K5 Final Report both in tabulated and in graphical forms. There were taken between 1997 and 2000.

Key comparison EUROMET.T-K5

print out

CCT-K5, CCT-K5.1 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1064 °C

Key comparison CCT-K5

T_i : temperature value measured by laboratory i
u_i : standard uncertainty of T_i
Lamp S/N C564

Lab i
T_i / °C u_i / °C VSL 1066.205 0.11 NMIA 1066.165 0.02 KRISS 1066.145 0.10 NIM - - A*STAR 1065.825 0.16 NMIJ 1066.305 0.13 VNIIM

1066.325

0.16

Lamp S/N C681

Lab i
T_i / °C u_i / °C VSL 1066.129 0.11 NMIA 1066.159 0.02 KRISS 1066.269 0.10 NIM - - A*STAR 1065.499 0.16 NMIJ 1066.219 0.13 VNIIM

1065.889

0.16

Lamp S/N C860

Lab i
T_i / °C u_i / °C NPL 1064.114 0.15 NIST 1064.434 0.26 CENAM 1064.444 0.25 LNE-INM 1063.824 0.16 INRIM 1064.524 0.08 PTB 1064.354 0.17 Lamp S/N C864

Lab i

T_i / °C u_i/ °C NPL 1064.114 0.15 NIST 1064.424 0.26 CENAM 1064.354 0.25 LNE-INM 1064.134 0.16 INRIM 1064.324 0.08 PTB 1064.144 0.17

Key comparison CCT-K5.1

This is a bilateral comparison between the PTB and the NRC.

T_NRC : temperature value measured at the NRC
u_NRC : standard uncertainty of T_NRC

Lamp S/N C598, T_N_RC = 1064.45 °C, u_NRC = 0.22 °C

Lamp S/N 644C, T_N_RC = 1064.46 °C, u_NRC = 0.22 °C

Key comparison APMP.T-K5

No results were obtained for this nominal temperature by the three laboratories (A*STAR, KIM-LIPI and CMS/ITRI) which participated in APMP.T-K5 only: see Appendix B of the APMP.T-K5 Final Report.

Key comparison EUROMET.T-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5, COOMET.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1084 °C

Key comparison CCT-K5

T_i : temperature value measured by laboratory i
u_i : standard uncertainty of T_i

Lamp S/N C564

Lab i	T_i / °C	u_i / °C

VSL	1086.602	0.11
NMIA	1086.572	0.02
KRISS	1086.562	0.08
NIM	-	-
*ASTAR**	1086.182	0.16
NMIJ	1086.722	0.13
VNIIM	1086.662	0.19

Lamp S/N C681

Lab i	T_i / °C	u_i / °C

VSL	1086.522	0.11
NMIA	1086.552	0.02
KRISS	1086.642	0.08
NIM	-	-
*ASTAR**	1085.842	0.16
NMIJ	1086.622	0.13
VNIIM	1086.282	0.19

Lamp S/N C860

Lab i	T_i / °C	u_i / °C

NPL	1085.207	0.15
NIST	-	-
CENAM	1085.517	0.26
LNE-INM	1084.917	0.16
INRIM	1085.607	0.09
PTB	1085.497	0.17

Lamp S/N C864

Lab i	T_i / °C	u_i/ °C

NPL	1085.111	0.15
NIST	-	-
CENAM	1085.401	0.26
LNE-INM	1085.191	0.16
INRIM	1085.361	0.09
PTB	1085.221	0.17

Key comparison CCT-K5.1

This is a bilateral comparison between the PTB and the NRC.

T_NRC : temperature value measured at the NRC
u_NRC : standard uncertainty of T_NRC

Lamp S/N C598, T_N_RC = 1084.85 °C, u_NRC = 0.23 °C

Lamp S/N 644C, T_N_RC = 1084.98 °C, u_NRC = 0.23 °C

Key comparison APMP.T-K5

Laboratory individual measurements of APMP.T-K5 participants are given in Appendix B of the APMP.T-K5 Final Report both in tabulated and in graphical forms. There were taken between 1997 and 2000.

Key comparison COOMET.T-K5

This bilateral comparison was carried out between VNIIM and NSC IM. The measurements were carried out from August to October 2014 using a vacuum tungsten ribbon lamb (S/N SI 10-300 No. 5). The individual results may be consulted in the COOMET.T-K5 Final Report .

Key comparison EUROMET.T-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1100 °C

Key comparison CCT-K5

T_i : temperature value measured by laboratory i
u_i : standard uncertainty of T_i
Lamp S/N C564

Lab i
T_i / °C u_i / °C VSL 1102.041 0.11 NMIA 1102.011 0.02 KRISS 1102.001 0.10 NIM 1102.111 0.14 A*STAR 1101.601 0.16 NMIJ 1102.161 0.13 VNIIM

1101.961

0.21

Lamp S/N C681

Lab i
T_i / °C u_i / °C VSL 1101.925 0.11 NMIA 1101.965 0.02 KRISS 1102.015 0.10 NIM 1102.205 0.14 A*STAR 1101.245 0.16 NMIJ 1102.045 0.13 VNIIM

1101.645

0.21

Lamp S/N C860

Lab i
T_i / °C u_i / °C NPL 1100.102 0.16 NIST 1100.762 0.27 CENAM 1100.502 0.26 LNE-INM 1099.902 0.17 INRIM 1100.602 0.09 PTB 1100.462 0.18 Lamp S/N C864

Lab i

T_i / °C u_i/ °C NPL 1100.108 0.16 NIST 1100.508 0.27 CENAM 1100.438 0.26 LNE-INM 1100.258 0.17 INRIM 1100.398 0.09 PTB 1100.268 0.18

Key comparison CCT-K5.1

This is a bilateral comparison between the PTB and the NRC.

T_NRC : temperature value measured at the NRC
u_NRC : standard uncertainty of T_NRC

Lamp S/N C598, T_N_RC = 1100.34°C, u_NRC = 0.24 °C

Lamp S/N 644C, T_N_RC = 1100.40 °C, u_NRC = 0.24 °C

Key comparison APMP.T-K5

Laboratory individual measurements of APMP.T-K5 participants are given in Appendix B of the APMP.T-K5 Final Report both in tabulated and in graphical forms. There were taken between 1997 and 2000.

Key comparison EUROMET.T-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1200 °C

Key comparison CCT-K5

T_i : temperature value measured by laboratory i
u_i : standard uncertainty of T_i
Lamp S/N C564

Lab i
T_i / °C u_i / °C VSL 1201.915 0.12 NMIA 1201.925 0.02 KRISS 1201.915 0.12 NIM 1201.925 0.16 A*STAR 1201.415 0.18 NMIJ 1202.105 0.15 VNIIM

1201.595

0.34

Lamp S/N C681

Lab i
T_i / °C u_i / °C VSL 1202.045 0.12 NMIA 1202.095 0.02 KRISS 1202.155 0.12 NIM 1202.315 0.16 A*STAR 1201.245 0.18 NMIJ 1202.255

0.15

VNIIM

1201.585

0.34

Lamp S/N C860

Lab i
T_i / °C u_i / °C NPL 1200.191 0.20 NIST 1200.851 0.31 CENAM 1200.561 0.31 LNE-INM 1199.951 0.19 INRIM 1200.671 0.10 PTB 1200.621 0.19 Lamp S/N C864

Lab i

T_i / °C u_i/ °C NPL 1200.105 0.20 NIST 1200.565 0.31 CENAM 1200.495 0.31 LNE-INM 1200.245 0.19 INRIM 1200.475 0.10 PTB 1200.495 0.19

Key comparison CCT-K5.1

This is a bilateral comparison between the PTB and the NRC.

T_NRC : temperature value measured at the NRC
u_NRC : standard uncertainty of T_NRC

Lamp S/N C598, T_N_RC = 1200.19 °C, u_NRC = 0.27 °C

Lamp S/N 644C, T_N_RC = 1200.33 °C, u_NRC = 0.27 °C

Key comparison APMP.T-K5

Laboratory individual measurements of APMP.T-K5 participants are given in Appendix B of the APMP.T-K5 Final Report both in tabulated and in graphical forms. There were taken between 1997 and 2000.

Key comparison EUROMET.T-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1300 °C

Key comparison CCT-K5

T_i : temperature value measured by laboratory i
u_i : standard uncertainty of T_i
Lamp S/N C564

Lab i
T_i / °C u_i / °C VSL 1301.992 0.14 NMIA 1302.032 0.02 KRISS 1301.982 0.14 NIM 1302.032 0.18 A*STAR 1301.402 0.21 NMIJ 1302.252 0.18 VNIIM

1301.512

0.47

Lamp S/N C681

Lab i
T_i / °C u_i / °C VSL 1302.378 0.14 NMIA 1302.428 0.02 KRISS 1302.518 0.14 NIM 1302.708 0.18 A*STAR 1301.468 0.21 NMIJ 1302.628 0.18 VNIIM

1301.628

0.47

Lamp S/N C860

Lab i
T_i / °C u_i / °C NPL 1300.182 0.23 NIST 1300.952 0.35 CENAM 1300.672 0.37 LNE-INM 1299.882 0.22 INRIM 1300.812 0.12 PTB 1300.752 0.21 Lamp S/N C864

Lab i

T_i / °C u_i/ °C NPL 1300.185 0.23 NIST 1300.735 0.35 CENAM 1300.595 0.37 LNE-INM 1300.495 0.22 INRIM 1300.675 0.12 PTB 1300.655 0.21

Key comparison CCT-K5.1

This is a bilateral comparison between the PTB and the NRC.

T_NRC : temperature value measured at the NRC
u_NRC : standard uncertainty of T_NRC

Lamp S/N C598, T_N_RC = 1300.20 °C, u_NRC = 0.33 °C

Lamp S/N 644C, T_N_RC = 1300.34 °C, u_NRC = 0.33 °C

Key comparison APMP.T-K5

Laboratory individual measurements of APMP.T-K5 participants are given in Appendix B of the APMP.T-K5 Final Report both in tabulated and in graphical forms. There were taken between 1997 and 2000.

Key comparison EUROMET.T-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1400 °C

Key comparison CCT-K5

T_i : temperature value measured by laboratory i
u_i : standard uncertainty of T_i
Lamp S/N C564

Lab i
T_i / °C u_i / °C VSL 1402.315 0.16 NMIA 1402.395 0.02 KRISS 1402.315 0.16 NIM 1402.375 0.21 A*STAR 1401.645 0.23 NMIJ 1402.655 0.21 VNIIM

1401.685

0.60

Lamp S/N C681

Lab i
T_i / °C u_i / °C VSL 1402.715 0.16 NMIA 1402.815 0.02 KRISS 1402.915 0.16 NIM 1403.135 0.21 A*STAR 1401.705 0.23 NMIJ 1403.085 0.21 VNIIM

1401.675

0.60

Lamp S/N C860

Lab i
T_i / °C u_i / °C NPL 1400.245 0.28 NIST 1401.165 0.39 CENAM 1400.715 0.44 LNE-INM 1400.005 0.26 INRIM 1400.955 0.14 PTB 1400.795 0.24 Lamp S/N C864

Lab i

T_i / °C u_i/ °C NPL 1400.165 0.28 NIST 1400.785 0.39 CENAM 1400.615 0.44 LNE-INM 1400.405 0.26 INRIM 1400.705 0.14 PTB 1400.635 0.24

Key comparison CCT-K5.1

This is a bilateral comparison between the PTB and the NRC.

T_NRC : temperature value measured at the NRC
u_NRC : standard uncertainty of T_NRC

Lamp S/N C598, T_N_RC = 1400.31 °C, u_NRC = 0.38 °C

Lamp S/N 644C, T_N_RC = 1400.31 °C, u_NRC = 0.38 °C

Key comparison APMP.T-K5

Laboratory individual measurements of APMP.T-K5 participants are given in Appendix B of the APMP.T-K5 Final Report both in tabulated and in graphical forms. There were taken between 1997 and 2000.

Key comparison EUROMET.T-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1500 °C

Key comparison CCT-K5

T_i : temperature value measured by laboratory i
u_i : standard uncertainty of T_i
Lamp S/N C564

Lab i
T_i / °C u_i / °C VSL 1502.581 0.17 NMIA 1502.671 0.03 KRISS 1502.601 0.19 NIM 1502.671 0.24 A*STAR 1501.821 0.26 NMIJ 1502.991 0.24 VNIIM

1502.161

0.73

Lamp S/N C681

Lab i
T_i / °C u_i / °C VSL 1503.015 0.17 NMIA 1503.205 0.03 KRISS 1503.215 0.19 NIM 1503.515 0.24 A*STAR 1501.835 0.26 NMIJ 1503.475 0.24 VNIIM

1501.775

0.73

Lamp S/N C860

Lab i
T_i / °C u_i / °C NPL 1500.242 0.32 NIST 1501.312 0.44 CENAM 1500.872 0.50 LNE-INM 1499.922 0.30 INRIM 1501.042 0.16 PTB 1500.882 0.26 Lamp S/N C864

Lab i

T_i / °C u_i/ °C NPL 1500.239 0.32 NIST 1500.939 0.44 CENAM 1500.709 0.50 LNE-INM 1500.499 0.30 INRIM 1500.829 0.16 PTB 1500.649 0.26

Key comparison CCT-K5.1

This is a bilateral comparison between the PTB and the NRC.

T_NRC : temperature value measured at the NRC
u_NRC : standard uncertainty of T_NRC

Lamp S/N C598, T_N_RC = 1500.50 °C, u_NRC = 0.40 °C

Lamp S/N 644C, T_N_RC = 1500.59 °C, u_NRC = 0.40 °C

Key comparison APMP.T-K5

Laboratory individual measurements of APMP.T-K5 participants are given in Appendix B of the APMP.T-K5 Final Report both in tabulated and in graphical forms. There were taken between 1997 and 2000.

Key comparison EUROMET.T-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1600 °C

Key comparison CCT-K5

T_i : temperature value measured by laboratory i
u_i : standard uncertainty of T_i
Lamp S/N C564

Lab i
T_i / °C u_i / °C VSL

1602.854

0.19 NMIA 1602.984 0.03 KRISS 1602.914 0.21 NIM 1602.964 0.27 A*STAR 1601.974 0.30 NMIJ 1603.364 0.27 VNIIM

1602.904

0.86

Lamp S/N C681

Lab i
T_i / °C u_i / °C VSL 1603.051 0.19 NMIA 1603.251 0.03 KRISS 1603.271 0.21 NIM 1603.641 0.27 A*STAR 1601.891 0.30 NMIJ 1603.651 0.27 VNIIM

1602.071

0.86

Lamp S/N C860

Lab i
T_i / °C u_i / °C NPL 1600.304 0.37 NIST 1601.604 0.49 CENAM 1600.884 0.60 LNE-INM 1599.904 0.34 INRIM 1601.084 0.18 PTB 1600.984 0.29 Lamp S/N C864

Lab i

T_i / °C u_i/ °C NPL 1600.227 0.37 NIST 1601.187 0.49 CENAM 1600.717 0.60 LNE-INM 1600.477 0.34 INRIM 1600.777 0.18 PTB 1600.627 0.29

Key comparison CCT-K5.1

This is a bilateral comparison between the PTB and the NRC.

T_NRC : temperature value measured at the NRC
u_NRC : standard uncertainty of T_NRC

Lamp S/N C598, T_N_RC = 1600.61 °C, u_NRC = 0.45 °C

Lamp S/N 644C, T_N_RC = 1600.69 °C, u_NRC = 0.45 °C

Key comparison APMP.T-K5

Laboratory individual measurements of APMP.T-K5 participants are given in Appendix B of the APMP.T-K5 Final Report both in tabulated and in graphical forms. There were taken between 1997 and 2000.

Key comparison EUROMET.T-K5

print out

CCT-K5, CCT-K5.1, APMP.T-K5 and EUROMET.T-K5

MEASURAND : Temperature
NOMINAL TEMPERATURE : T_nom = 1700 °C

Key comparison CCT-K5

T_i : temperature value measured by laboratory i
u_i : standard uncertainty of T_i
Lamp S/N C564

Lab i
T_i / °C u_i / °C VSL

1703.310

0.21 NMIA 1703.510 0.04 KRISS 1703.410 0.25 NIM 1703.480 0.31 A*STAR 1702.320 0.34 NMIJ 1703.930 0.31 VNIIM

1703.930

0.99

Lamp S/N C681

Lab i
T_i / °C u_i / °C VSL 1703.010 0.21 NMIA 1703.340 0.04 KRISS 1703.380 0.25 NIM 1703.810 0.31 A*STAR 1701.690 0.34 NMIJ 1703.770 0.31 VNIIM

1702.930

0.99

Lamp S/N C860

Lab i
T_i / °C u_i / °C NPL 1700.290 0.41 NIST 1701.530 0.55 CENAM 1700.730 0.65 LNE-INM 1699.710 0.38 INRIM 1700.970 0.21 PTB 1700.870 0.32 Lamp S/N C864

Lab i

T_i / °C u_i/ °C NPL 1700.300 0.41 NIST 1701.190 0.55 CENAM 1700.650 0.65 LNE-INM 1700.400 0.38 INRIM 1700.760 0.21 PTB 1700.650 0.32

Key comparison CCT-K5.1

This is a bilateral comparison between the PTB and the NRC.

T_NRC : temperature value measured at the NRC
u_NRC : standard uncertainty of T_NRC

Lamp S/N C598, T_N_RC = 1700.66 °C, u_NRC = 0.50 °C

Lamp S/N 644C, T_N_RC = 1700.72 °C, u_NRC = 0.50 °C

Key comparison APMP.T-K5

Laboratory individual measurements of APMP.T-K5 participants are given in Appendix B of the APMP.T-K5 Final Report both in tabulated and in graphical forms. There were taken between 1997 and 2000.

Key comparison EUROMET.T-K5

KCDB

CIPM MRA

CLASSIFICATION OF SERVICES

Key and supplementary comparisons - Print out
