CCM.M-K4, SIM.M.M-K4, APMP.M.M-K4.1, EURAMET.M.M-4.2015 and GULFMET.M.M-K4
MEASURAND : Mass
NOMINAL VALUE: 1 kg

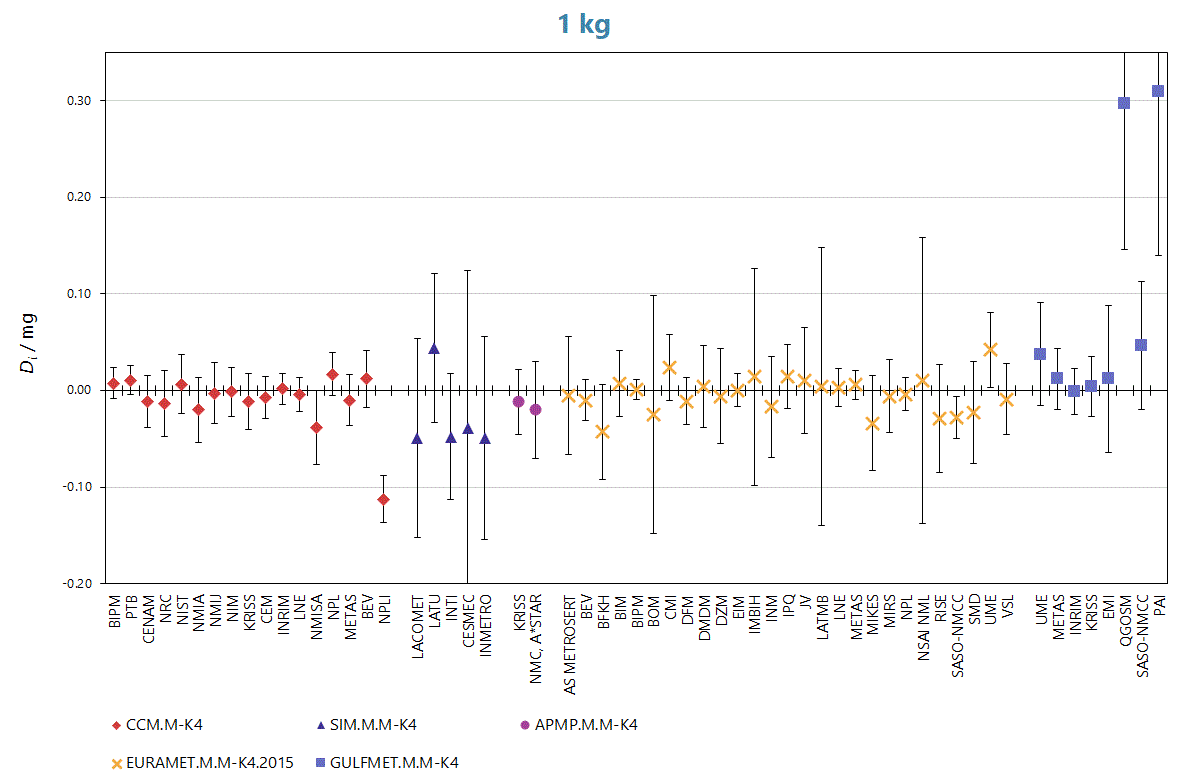

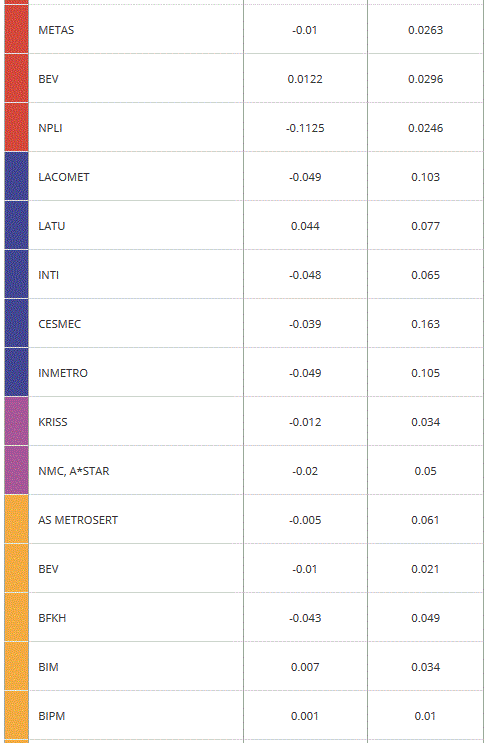

Degrees of equivalence represented by Di and its expanded uncertainty Ui (k = 2), both expressed in mg.
CCM.M-K4, SIM.M.M-K4, APMP.M.M-K4, EURAMET.M.M-4.2015 and GULFMET.M.M-K4
MEASURAND : Mass
NOMINAL VALUE: 1 kg
Degrees of equivalence represented by Di and its expanded uncertainty Ui (k =2), both expressed in mg.
 |
 |
 |
 |
 |
 |
| Metrology area, Sub-field | Mass and related quantities, Mass Standards |
| Description | Comparison of mass standards |
| Time of measurements | 2017 - 2018 |
| Status | Approved for equivalence |
| Final Reports of the comparisons | |
| Measurand | Mass: 1 kg |
| Transfer device | Stainless steel standards |
| Comparison type | Key Comparison |
| Consultative Committee | CCM (Consultative Committee for Mass and Related Quantities) |
| Conducted by | EURAMET (European Association of National Metrology Institutes) |
| RMO Internal Identifier | EURAMET Project No 1346 |
| Comments | Results published on 16 March 2020 |
| Pilot institute |
BEV
Bundesamt für Eich- und Vermessungswesen Austria |
| Contact person | Z. Zelenka +43 1 211 10 6607 |
| Pilot laboratory | |
|---|---|
| BEV |
Bundesamt für Eich- und Vermessungswesen, Austria, EURAMET |
| AS METROSERT |
Central Office of Metrology, Estonia, EURAMET |
| BFKH |
Government Office of the Capital City Budapest, Hungary, EURAMET |
| BIM |
Bulgarian Institute of Metrology, Bulgaria, EURAMET |
| BIPM |
Bureau International des Poids et Mesures, BIPM - International Organization, N/A |
| BOM |
Bureau of Metrology, Ministry of Economy (North Macedonia), North Macedonia, EURAMET |
| CMI |
Czech Metrology Institute, Czechia, EURAMET |
| DFM |
Danish Fundamental Metrology A/S, Denmark, EURAMET |
| DMDM |
Directorate of Measures and Precious Metals, Serbia, EURAMET |
| DZM |
State Office for Metrology, Croatia, EURAMET |
| EIM |
Hellenic Institute of Metrology, Greece, EURAMET |
| IMBIH |
Institute of Metrology of Bosnia and Herzegovina, Bosnia and Herzegovina, EURAMET |
| INM |
National Institute of Metrology, Romania, EURAMET |
| IPQ |
Instituto Portugues da Qualidade, Portugal, EURAMET |
| JV |
Justervesenet, Norway, EURAMET |
| LATMB |
LNMC Metrology Bureau (LATMB), Latvia, EURAMET |
| LNE |
Laboratoire national de métrologie et d'essais, France, EURAMET |
| METAS |
Federal Institute of Metrology, Switzerland, EURAMET |
| MIKES |
VTT Technical Research Centre of Finland Ltd, Centre for Metrology/Mittatekniikan keskus, Finland, EURAMET |
| MIRS |
Metrology Institute of the Republic of Slovenia, Ministry of the Economy, Tourism and Sport, Slovenia, EURAMET |
| NPL |
National Physical Laboratory, United Kingdom, EURAMET |
| NSAI NML |
NSAI National Metrology Laboratory, Ireland, EURAMET |
| RISE |
Research Institutes of Sweden AB, Sweden, EURAMET |
| SASO-NMCC |
National Measurement and Calibration Center - Saudi Standards, Metrology and Quality Organization, Saudi Arabia, GULFMET |
| SMD |
Service de la Métrologie Belge, Belgium, EURAMET |
| SMU |
Slovensky Metrologicky Ustav, Slovakia, EURAMET |
| UME |
TÜBITAK Ulusal Metroloji Enstitüsü, Türkiye, EURAMET |
| VSL |
VSL, Netherlands, EURAMET |
This page proposes print-out on A4 paper (portrait) of the comparison details (best printed out using a black and white printer).
Please, select items to be printed out, then click on "OK" :
CCM.M-K4, SIM.M.M-K4, APMP.M.M-K4.1, EURAMET.M.M-4.2015 and GULFMET.M.M-K4
MEASURAND : Mass
NOMINAL VALUE: 1 kg
CCM.M-K4
For each of the travelling mass standards, the key comparison reference value, xR, and its standard uncertainty, uR, were obtained using the generalized linear least-squares method as explained in section VII of the CCM.M-K4 Final Report.

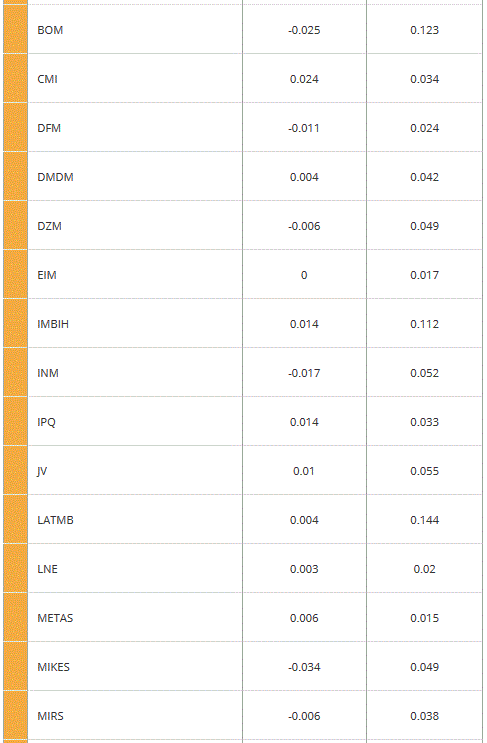

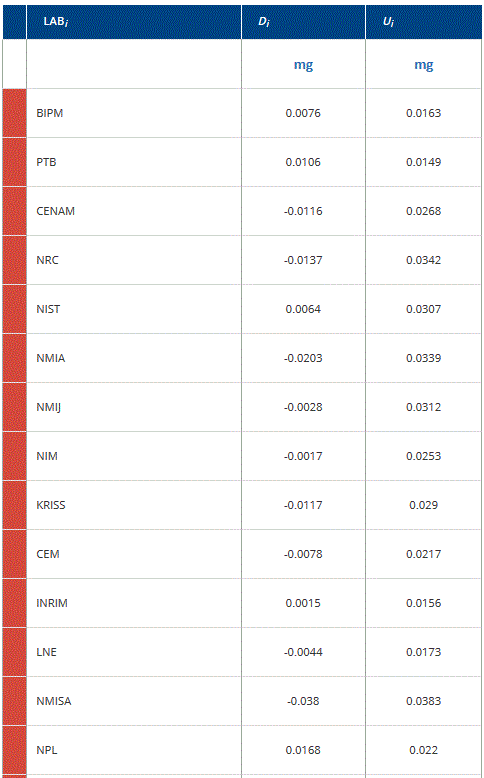

The degree of equivalence of each laboratory i with respect to the reference value is given by a pair of terms:
Di and Ui its expanded uncertainty (k = 2), both expressed in mg.
Detailed information on the evaluation of Di and Ui may be found in section VIII of the Final Report.
There were no degrees of equivalence between pair of laboratories calculated for this comparison.
Linking SIM.M.M-K4 to CCM.M-K4
The results of the SIM.M.M-K4 comparison were linked to CCM.M-K4 via the CENAM and NRC. The linking procedure is described on pages 5 to 7 of the SIM.M.M-K4 Final Report.
Linking APMP.M.M-K4.1 to CCM.M-K4
KRISS participated in both key comparisons, APMP.M.M-K4.1 and CCM.M-K4, providing a link between the NMC, A*STAR result and the key comparison reference value of CCM.M-K4. The linkage process is described in Section 7 of the APMP.M.M-K4.1 Final Report.

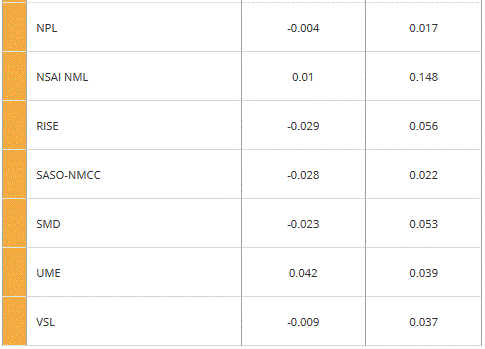

Linking EURAMET.M.M-K4.2015 to CCM.M-K4
The results of the EURAMET.M.M-K4.2015 comparison were linked to CCM.M-K4 via the BEV, BIPM, LNE, METAS and NPL. The linkage process is described in Section 7 of the EURAMET.M.M-K4.2015 Final Report.

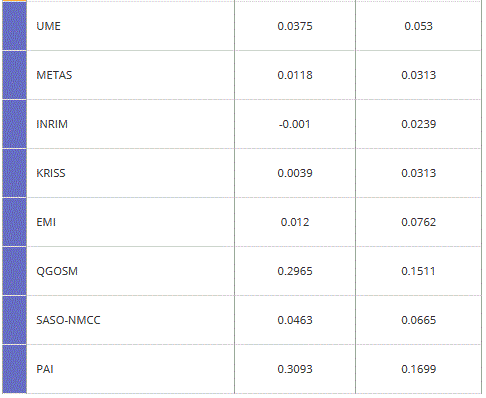

Linking GULFMET.M.M-K4 to CCM.M-K4
The results of the GULFMET.M.M-K4 comparison were linked to CCM.M-K4 via the INRIM, METAS and KRISS. The linkage process is described in Section 7 of the GULFMET.M.M-K4 Final Report.
CCM.M-K4, SIM.M.M-K4, APMP.M.M-K4.1, EURAMET.M.M-4.2015 and GULFMET.M.M-K4
MEASURAND : Mass
NOMINAL VALUE: 1 kg
CCM.M-K4
The key comparison was organized in four simultaneous “petals”. Each of the four participants within a petal received the same two travelling mass standards as follows:

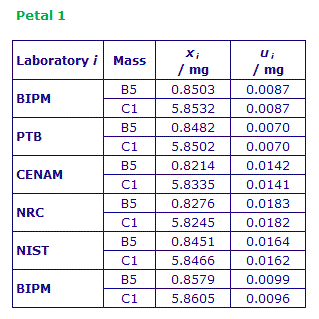

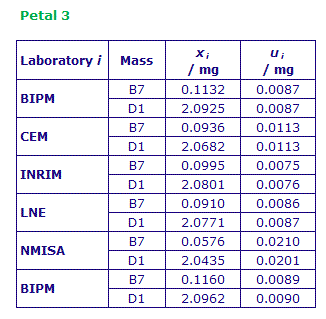

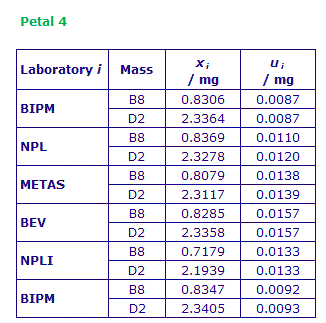

Petal 1: Mass standards B5 and C1; Petal 2: Mass standards B6 and C2; Petal 3: Mass standards B7 and D1; Petal 4: Mass standards B8 and D2.
The pilot laboratory, the BIPM, carried out a comparison of the standards before the comparison started, and after completion of measurements within each petal.
xi : reported result obtained as the difference between the measurement of the mass standard carried out by laboratory i and its nominal value, and corrected for the drift of the travelling mass standard as explained on page 8 of the Final Report.
ui : combined standard uncertainty of xi
SIM.M.M-K4
The laboratory individual measurement results are given on page 3 of the SIM.M.M-K4 Final Report.
APMP.M.M-K4.1
The results reported by the particpants in APMP.M.M-K4.1 are given in section 6 of the APMP.M.M-K4.1 Final Report.
EURAMET.M.M-K4.2015
The results reported by the particpants in EURAMET.M.M-K4.2015 are given in Table 5 of the EURAMET.M.M-K4.2015 Final Report.
GULMET.M.M-K4
The results reported by the particpants in GULFMET.M.M-K4 are given in Table 5 of the GULFMET.M.M-K4 Final Report.
